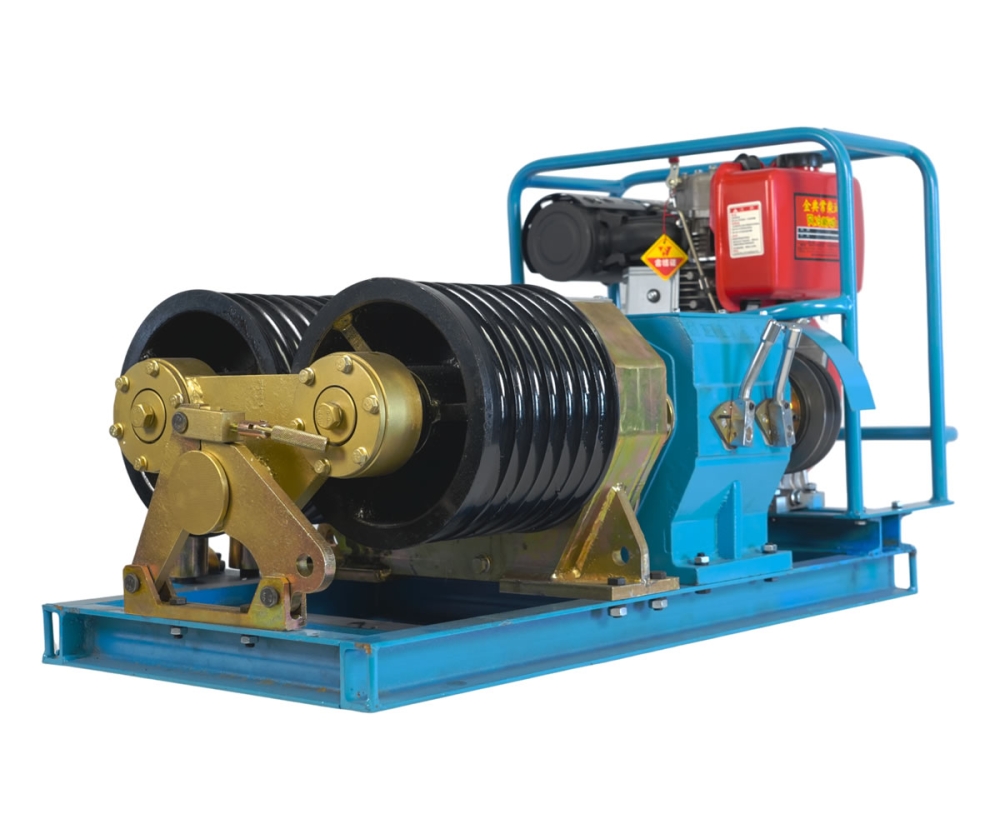

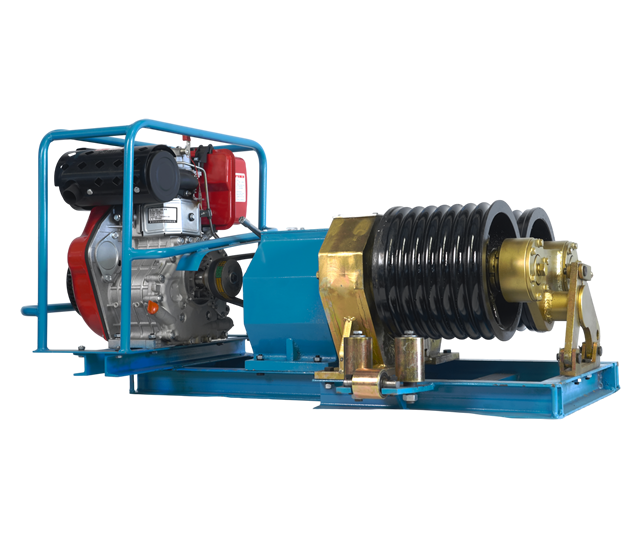

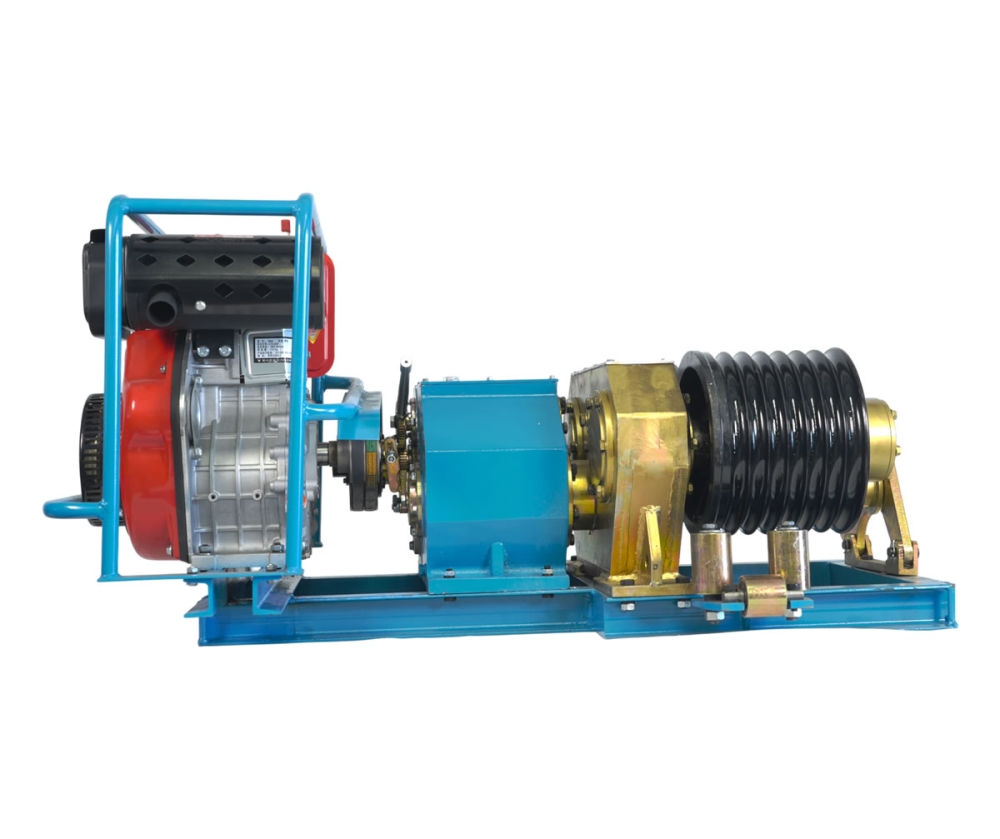

Dual-drum Cable Pulling Winch Machine, JM-XJ5S-C, 50 kN
- Drive System:
- Diesel
- Max Pull:
- 50kN
- Pulling Speed:
- 6 m/min
Key Features：
1、The JM-XJ5S-C Cable Pulling Winch is available in two versions: a dual-drum diesel version and a dual-drum gasoline version.

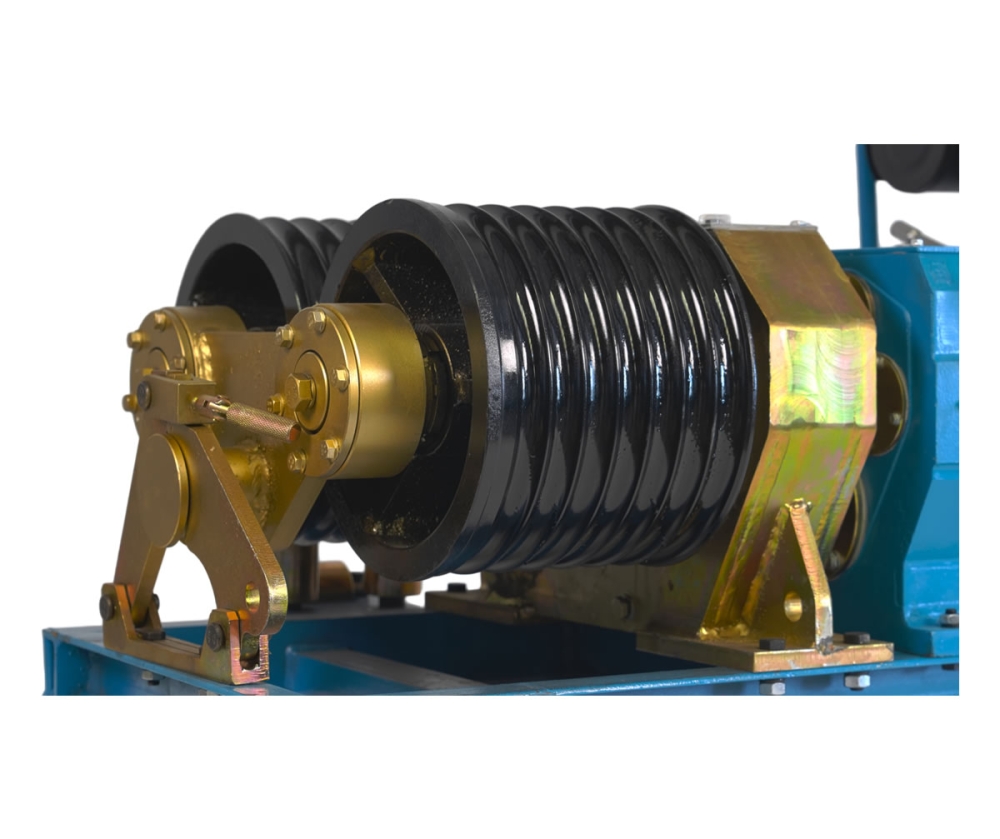

2、The JM-XJ5S-C Cable Pulling Winch features an advanced dual-drum design that effectively prevents wire rope twisting during pulling operations, solving the severe twisting and knotting issues commonly associated with single-drum systems during line payout and retrieval.
3、Utilizing a robust belt-driven power transmission, the JM-XJ5S-C absorbs operational shock during gear shifting, providing superior protection for both the internal drivetrain and the wire ropes.
4、In low-gear operations, the JM-XJ5S-C delivers a powerful heavy-duty output of 50 kN @ 6 m/min, providing 5-fold torque multiplication compared with high-speed gear operation.
5、Built with heavy-duty, thickened drums, the JM-XJ5S-C Cable Pulling Winch offers exceptional wear and pressure resistance, ensuring long-term structural integrity without deformation even under continuous high-load conditions.
| Model: | JM-XJ5S-C |
| Drive System: | Diesel |
| Control Mode: | Manual Control |
| Motor Power: | — |
| Rated Pull: | 50kN |
| Max Pull: | 50kN |
| Gearbox: | 4 Forward + 2 Reverse |
| Braking System: | Mechanical Brake |
| Transmission Type: | Belt Drive |
| Pulling Speed: | 6 m/min |
| Dimensions: | 124 × 59 × 63 cm |
| Net Weight: | 289 kg |
| Gear Position | Pulling Force | Pulling Speed |
|---|---|---|
| 1st Forward Gear | 50 kN | 6 m/min |
| 2nd Forward Gear | 30 kN | 13 m/min |
| 3rd Forward Gear | 22 kN | 16 m/min |
| 4th Forward Gear | 10 kN | 33 m/min |
| 1st Reverse Gear | — | 6 m/min |
| 2nd Reverse Gear | — | 9 m/min |
| # | Model | Drive System | Rated Pull | Max Pull | Pulling Speed | Net Weight | View |
|---|---|---|---|---|---|---|---|
| 1 | JM-XJ8-C | Diesel | 80kN | 80kN | 5.9 m/min | 174 kg | View |
| 2 | JM-XJ5PLUS-C | Diesel | 50kN | 50kN | 8 m/min | 162 kg | View |
| 3 | JM-XJ5S-C | Diesel | 50kN | 50kN | 6 m/min | 289 kg | View |
| 4 | JM-XJ5-C | Diesel | 50kN | 50kN | 4.5 m/min | 157 kg | View |
| 5 | JM-XJ3Pro-C | Diesel | 25kN | 25kN | 13 m/min | 135 kg | View |
| 6 | JM-XJ3-Q | Gasoline | 30kN | 30kN | 5 m/min | 90 kg | View |
