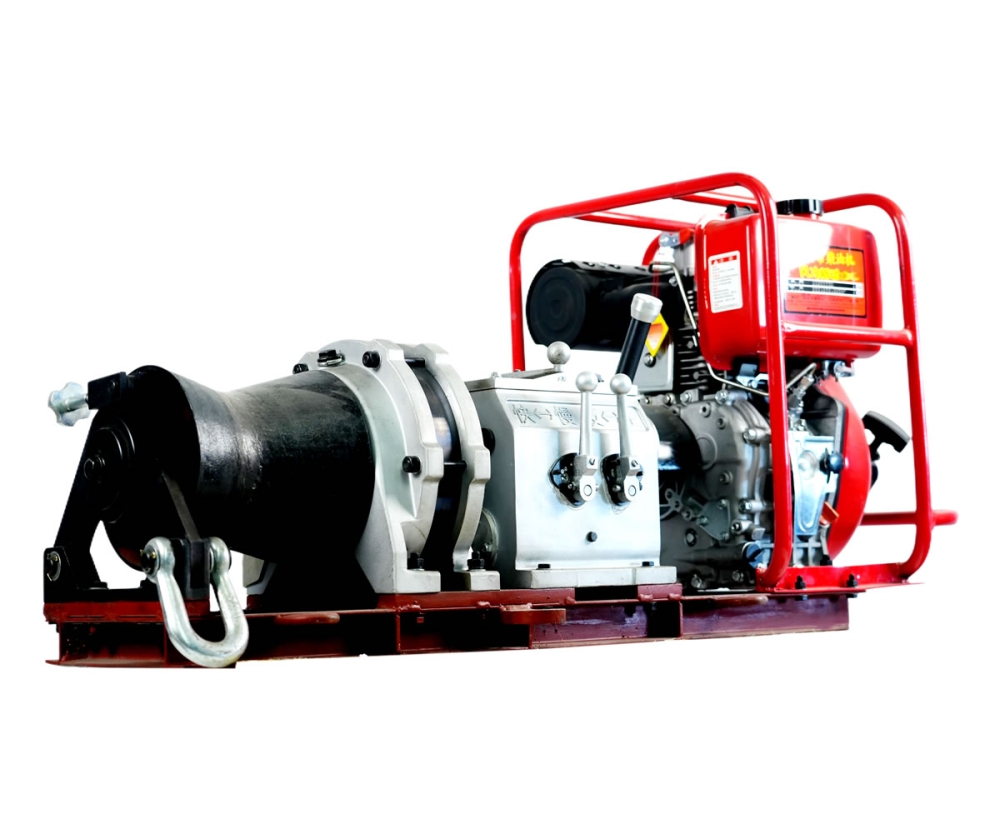

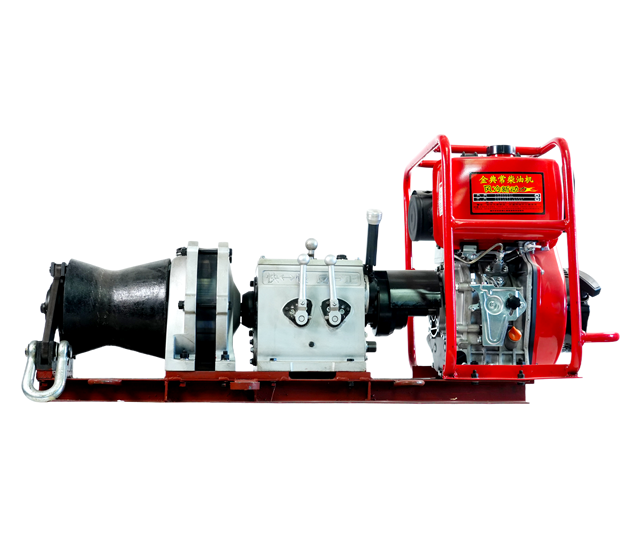

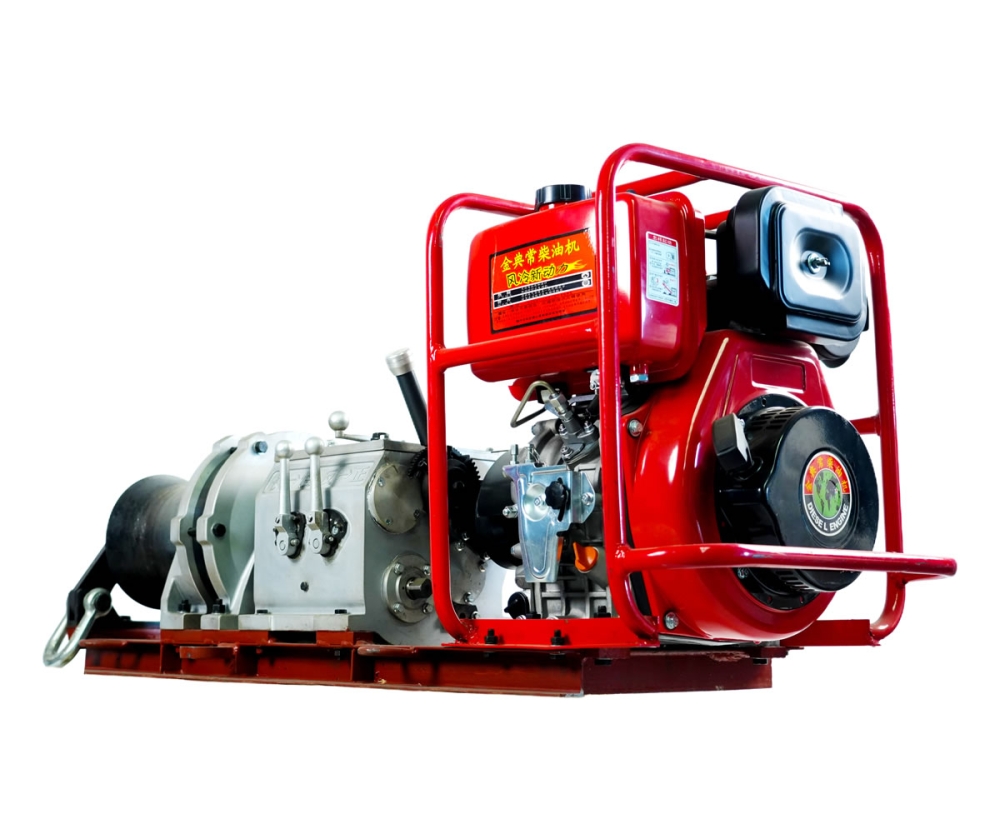

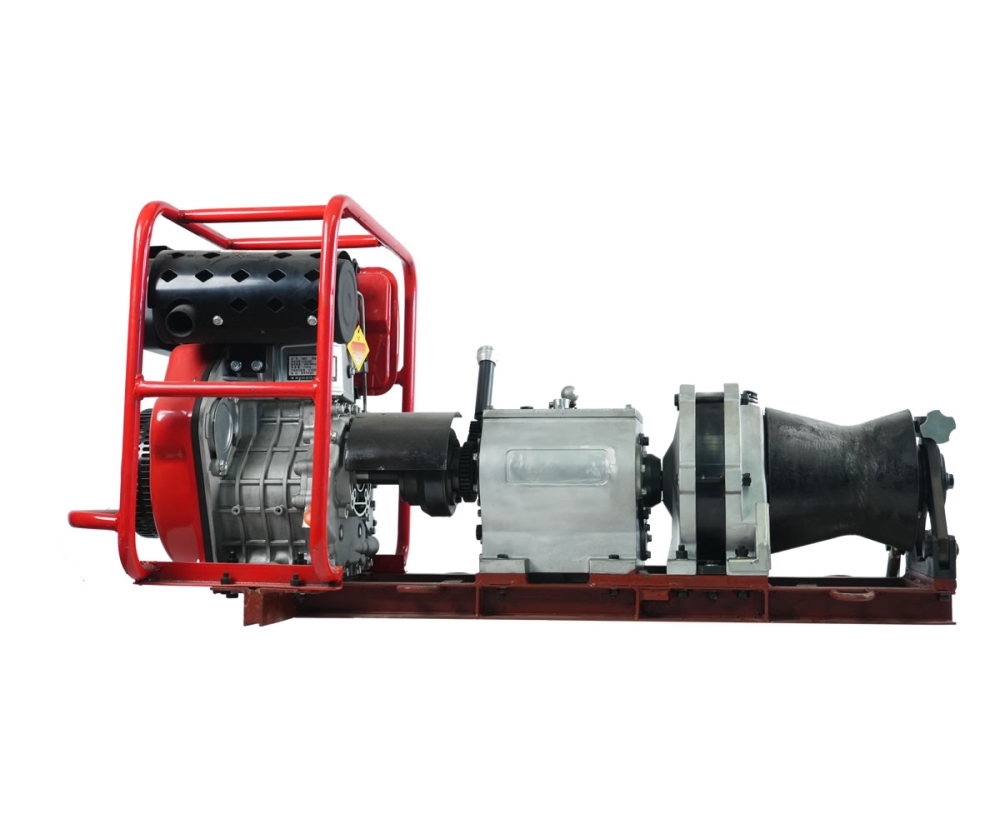

Cable Pulling Winch Machine, JM-XJ5PLUS-C, Plus Version, 50 kN
- Drive System:
- Diesel
- Max Pull:
- 50kN
- Pulling Speed:
- 8 m/min
Key Features：
1、This Cable Pulling Winch is available in two Plus variants: gasoline-powered and diesel-powered.
2、The rated engine power has been significantly upgraded to 7 kW, providing a stronger and more powerful drive source for the entire machine. It ensures stable, high-efficiency output during long-duration, high-intensity, continuous heavy-load operations, effectively preventing engine overheating and stalling.
3、Engineered with a specialized Forward Gear 4 heavy-load setting, the machine directly delivers the full rated pulling force of 50 kN @ 8 m/min — approximately 5 metric tons. Through its innovative transmission design, it achieves 5-fold torque multiplication, allowing operators to complete key cable tensioning operations without frequent gear shifting, greatly simplifying the operating process and improving on-site efficiency.
| Model: | JM-XJ5PLUS-C |
| Drive System: | Diesel |
| Control Mode: | Manual Control |
| Motor Power: | — |
| Rated Pull: | 50kN |
| Max Pull: | 50kN |
| Gearbox: | 4 Forward + 2 Reverse |
| Braking System: | Mechanical Brake |
| Transmission Type: | Shaft Drive |
| Pulling Speed: | 8 m/min |
| Dimensions: | 120 × 50 × 58 cm |
| Net Weight: | 162 kg |
| Gear Position | Pulling Force | Pulling Speed |
|---|---|---|
| 1st Forward Gear | 9.8 kN | 24 m/min |
| 2nd Forward Gear | 14.7 kN | 13 m/min |
| 3rd Forward Gear | 24.5 kN | 8 m/min |
| 4th Forward Gear | 50 kN | 8 m/min |
| 1st Reverse Gear | — | 6 m/min |
| 2nd Reverse Gear | — | 6 m/min |
| # | Model | Drive System | Rated Pull | Max Pull | Pulling Speed | Net Weight | View |
|---|---|---|---|---|---|---|---|
| 1 | JM-XJ8-C | Diesel | 80kN | 80kN | 5.9 m/min | 174 kg | View |
| 2 | JM-XJ5PLUS-C | Diesel | 50kN | 50kN | 8 m/min | 162 kg | View |
| 3 | JM-XJ5S-C | Diesel | 50kN | 50kN | 6 m/min | 289 kg | View |
| 4 | JM-XJ5-C | Diesel | 50kN | 50kN | 4.5 m/min | 157 kg | View |
| 5 | JM-XJ3Pro-C | Diesel | 25kN | 25kN | 13 m/min | 135 kg | View |
| 6 | JM-XJ3-Q | Gasoline | 30kN | 30kN | 5 m/min | 90 kg | View |
