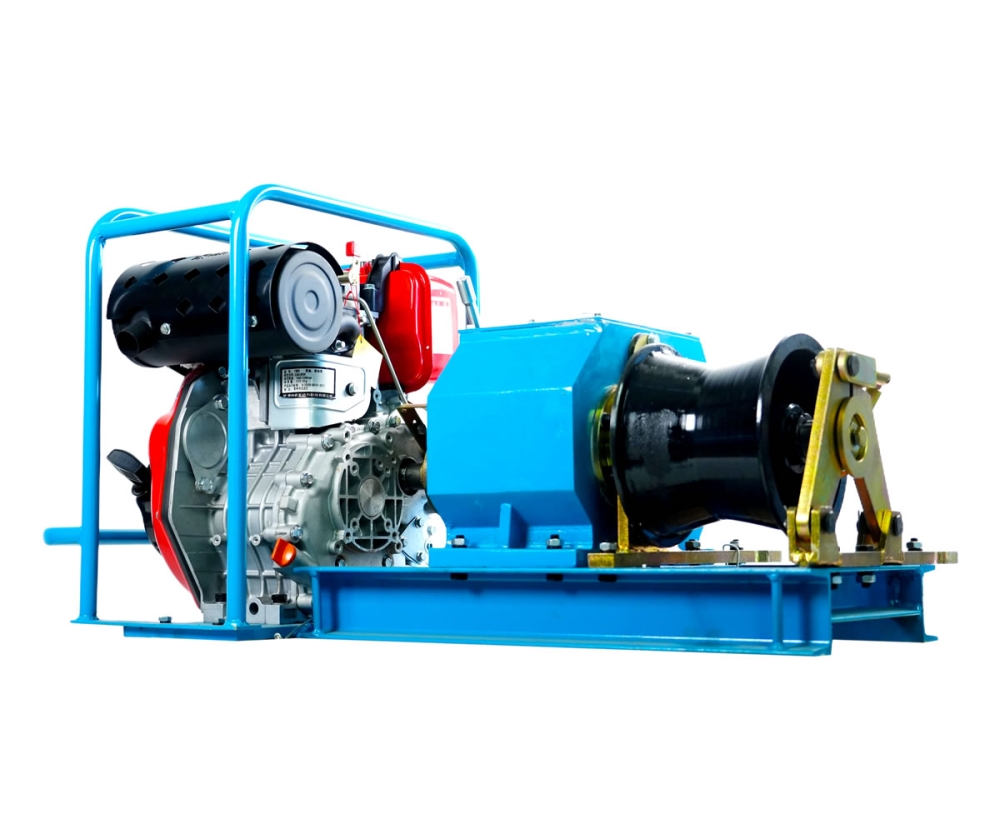

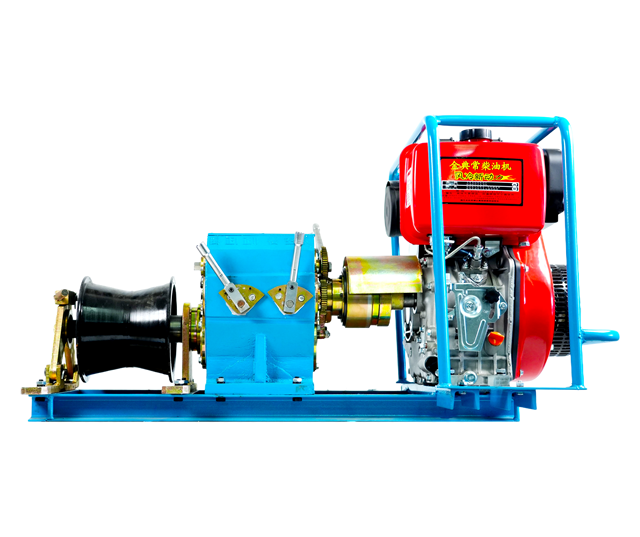

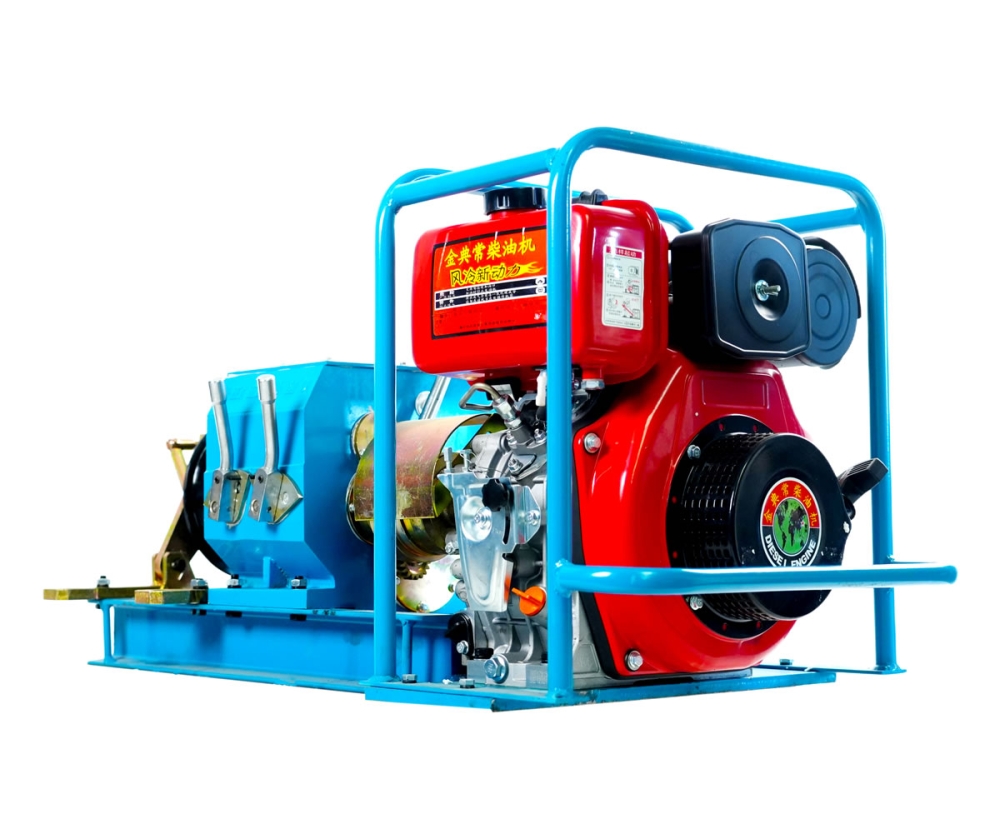

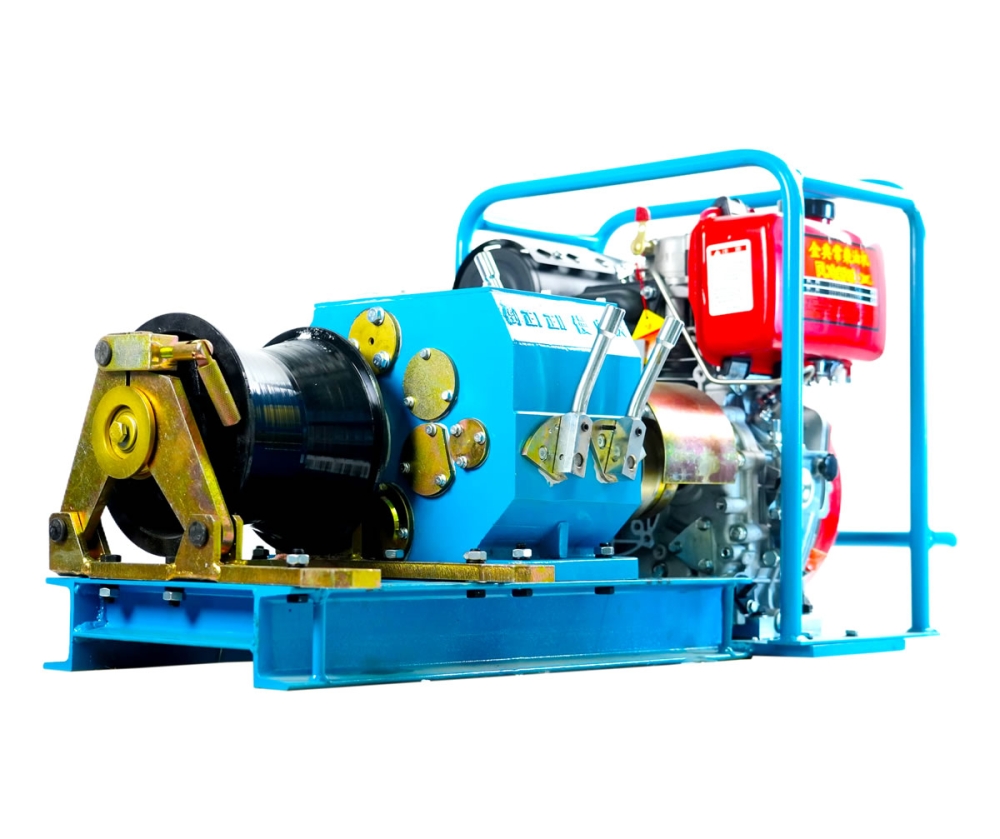

Cable Pulling Winch Machine, JM-XJ5-C, 50 kN

Key Features：

1. This machine is available in both diesel and gasoline versions, freeing it from reliance on external electricity. It is designed specifically for harsh, off-grid construction environments such as remote field sites, deserts, and mountainous areas.

2. With its powerful capacity and a rated pulling force of 50 kN (approximately 5 metric tons), this machine can easily handle long-distance pulls of thick, heavy high-voltage power cables.

3. This machine offers multi-purpose capability and high versatility, making it ideal for medium- and high-voltage line construction projects from 10 kV to 110 kV.

4. Delivering efficient performance across a wide range of tensioning applications, it helps contractors minimize the need to frequently switch between or rent different machine models, thereby maximizing overall cost-effectiveness.

5. Built with a solid and stable structure, the machine ensures safer performance during heavy-duty operations. Its 157 kg net weight strikes an excellent balance between job-site portability and structural stability.

6. Under peak loads, the machine maintains firm ground contact, reducing severe vibration and helping prevent displacement or overturning. This high stability significantly reduces the risk of mechanical accidents such as line breakage or cable jamming, helping safeguard on-site personnel.

7. The advanced 4 forward + 2 reverse gear configuration provides far greater flexibility than conventional models, allowing refined, highly adaptable pulling control tailored to complex on-site conditions.

8. Forward Gear 1 (4.5 m/min @ 50 kN): During the initial pulling stage of heavy 110 kV cables, or when navigating bends and challenging sections, this gear delivers the full rated pulling force of 50 kN (approximately 5 metric tons), ensuring steady, low-speed, high-load pulling while preventing engine stalling.

9. Forward Gears 2 & 3 (8.5–11 m/min @ 26–20 kN): During stable, continuous cable-laying operations, these gears provide a balanced pulling output of approximately 2–2.6 metric tons of force, optimally combining speed and power for medium-voltage line construction.

10. Forward Gear 4 (23 m/min @ 10 kN): Engineered for no-load line retrieval, pulling lightweight conductors, or rapid take-up under light load, the speed reaches up to 23 m/min, significantly reducing non-construction auxiliary time and boosting efficiency.

11. Dual Reverse Gears (3.5 / 9 m/min): Provide safe, highly controllable reverse operation. During cable position adjustment, line slackening, or alignment correction, they offer precise control to prevent cable jamming, tangles, and knots, significantly enhancing handling safety and troubleshooting efficiency.
