Model:
JM-XJ3Pro-C

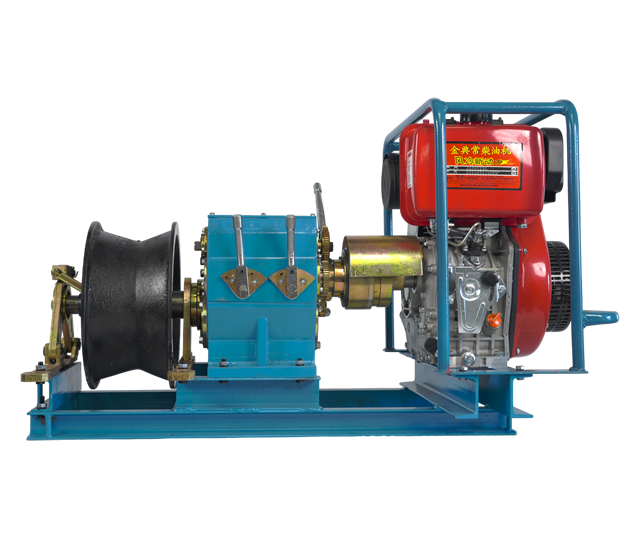

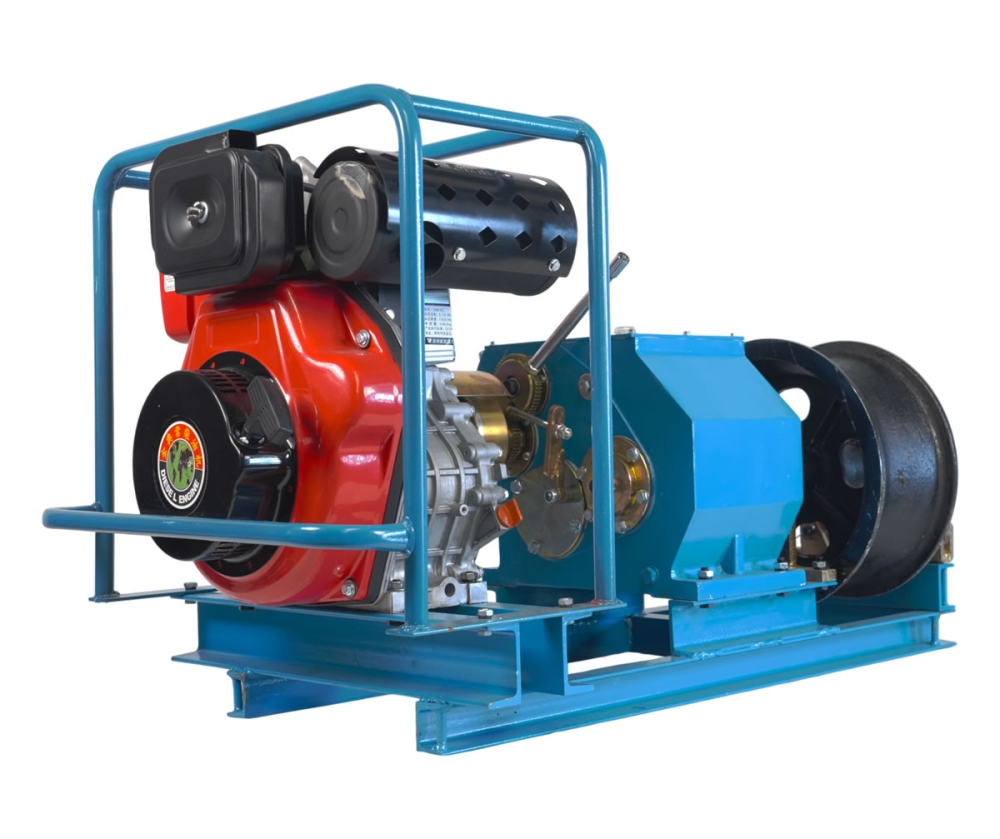

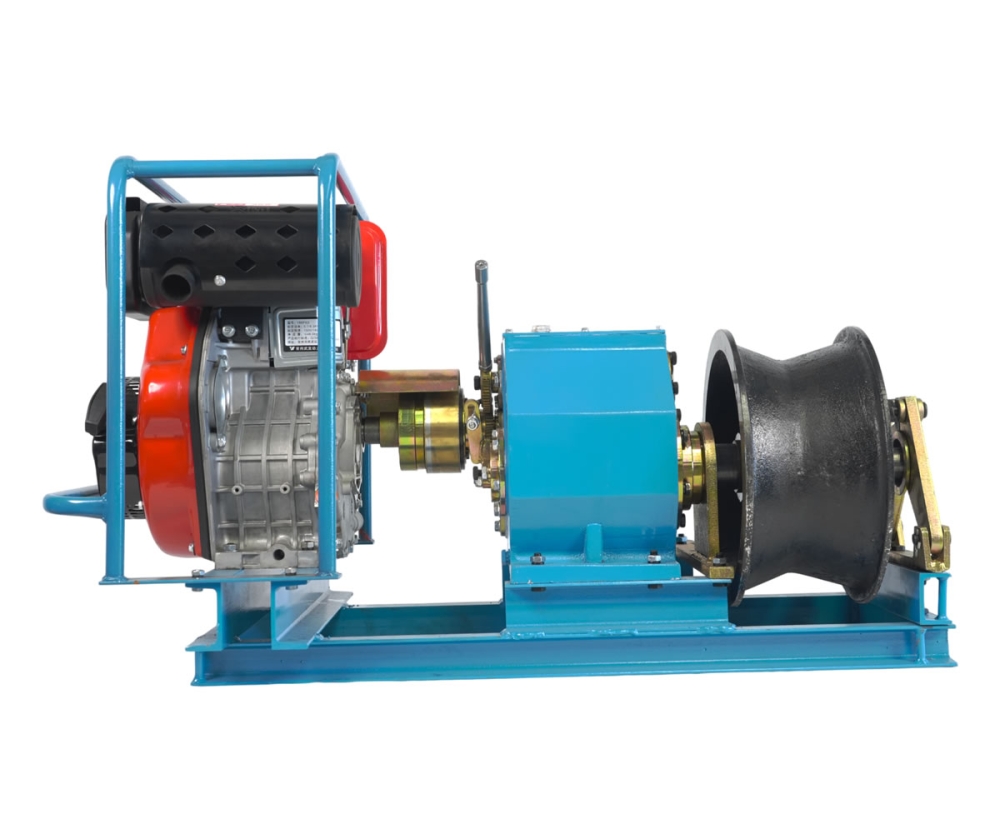

Cable Pulling Winch Machine, JM-XJ3Pro-C, 25 kN
- Drive System:
- Diesel
- Max Pull:
- 25kN
- Pulling Speed:
- 13 m/min
Key Features：
1、This machine is equipped with a 36 cm large-diameter drum, allowing faster rope take-up and pay-out.

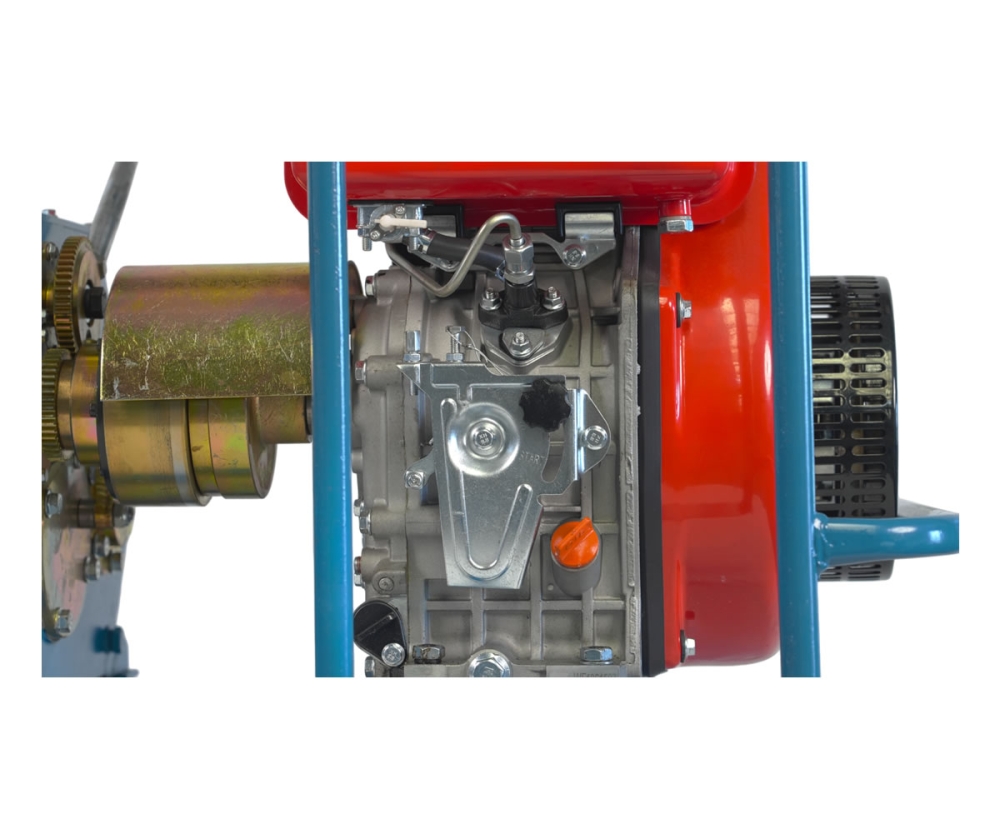

2、Powered by a 6.8 kW diesel engine, this machine can operate normally in outdoor construction sites without access to electricity.
3、This machine features multi-gear speed adjustment with 4 forward gears and 2 reverse gears, and the pulling speed can reach up to 55 m/min during high-speed pulling operations.
| Model: | JM-XJ3Pro-C |
| Drive System: | Diesel |
| Control Mode: | Manual Control |
| Motor Power: | — |
| Rated Pull: | 25kN |
| Max Pull: | 25kN |
| Gearbox: | 4 Forward + 2 Reverse |
| Braking System: | Mechanical Brake |
| Transmission Type: | Shaft Drive |
| Pulling Speed: | 13 m/min |
| Dimensions: | 110 × 59 × 64 cm |
| Net Weight: | 135 kg |
| Gear Position | Pulling Force | Pulling Speed |
|---|---|---|
| 1st Forward Gear | 25 kN | 13 m/min |
| 2nd Forward Gear | 20 kN | 26 m/min |
| 3rd Forward Gear | 9 kN | 48 m/min |
| 4th Forward Gear | 5 kN | 55 m/min |
| 1st Reverse Gear | — | 13 m/min |
| 2nd Reverse Gear | — | 27 m/min |
| # | Model | Drive System | Rated Pull | Max Pull | Pulling Speed | Net Weight | View |
|---|---|---|---|---|---|---|---|
| 1 | JM-XJ8-C | Diesel | 80kN | 80kN | 5.9 m/min | 174 kg | View |
| 2 | JM-XJ5PLUS-C | Diesel | 50kN | 50kN | 8 m/min | 162 kg | View |
| 3 | JM-XJ5S-C | Diesel | 50kN | 50kN | 6 m/min | 289 kg | View |
| 4 | JM-XJ5-C | Diesel | 50kN | 50kN | 4.5 m/min | 157 kg | View |
| 5 | JM-XJ3Pro-C | Diesel | 25kN | 25kN | 13 m/min | 135 kg | View |
| 6 | JM-XJ3-Q | Gasoline | 30kN | 30kN | 5 m/min | 90 kg | View |
