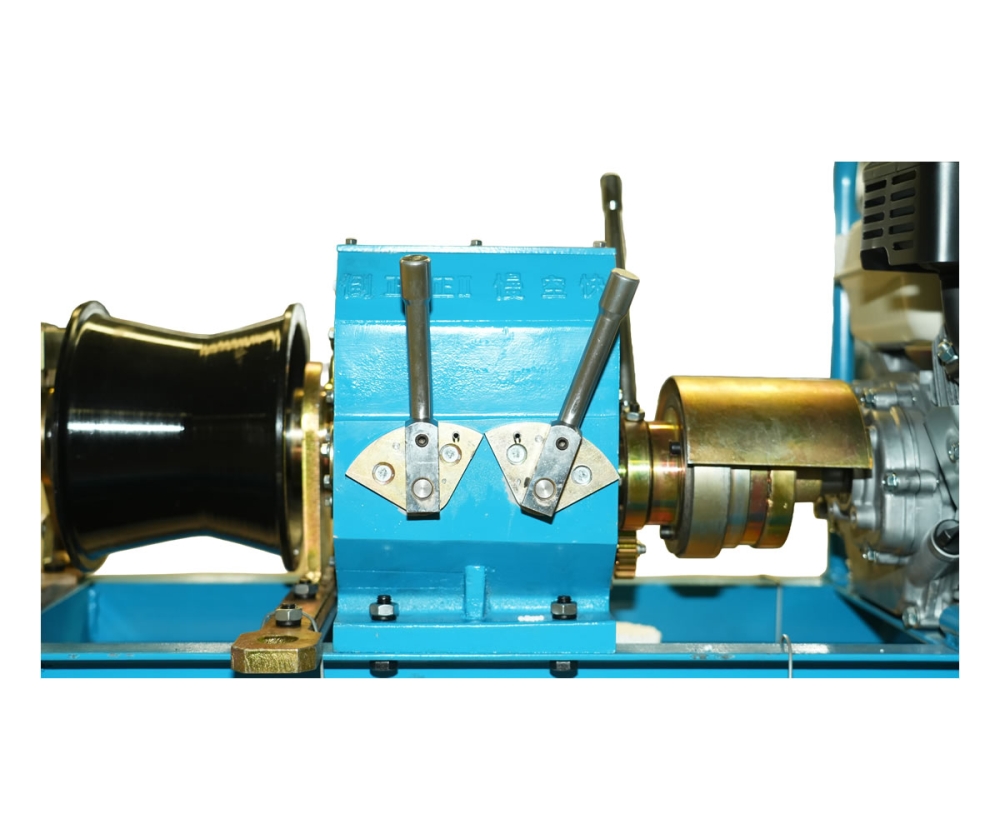

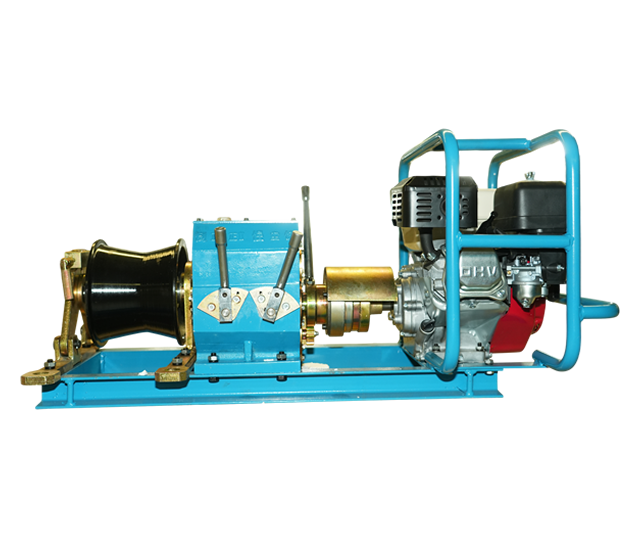

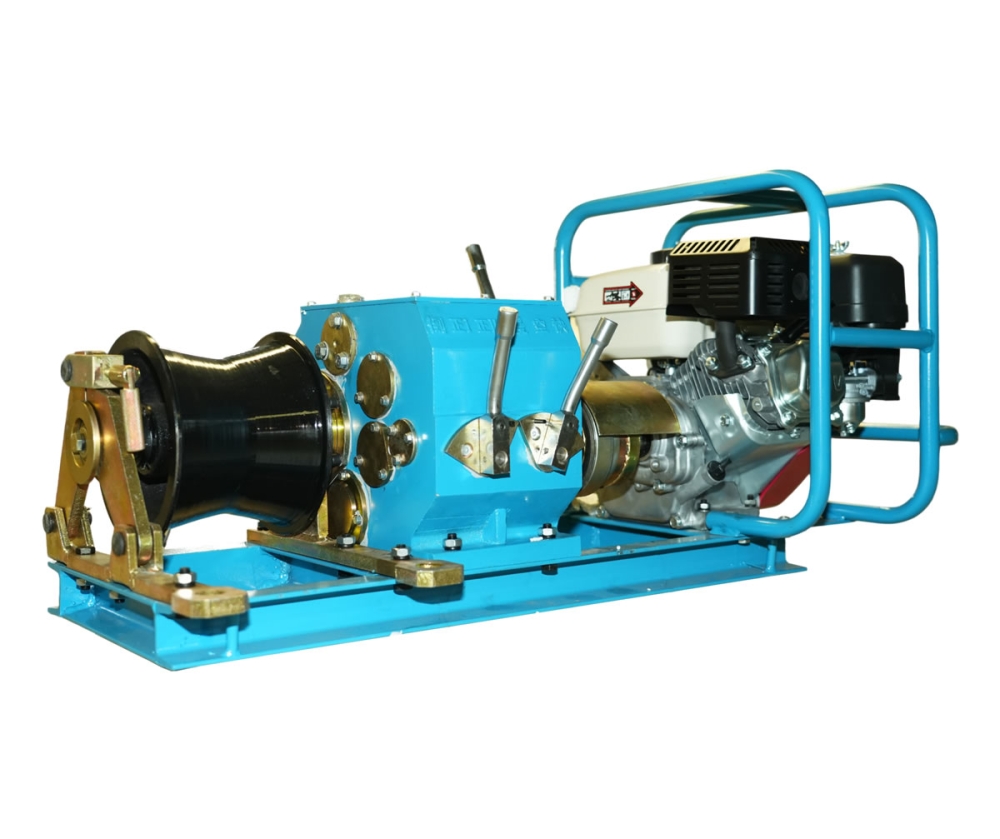

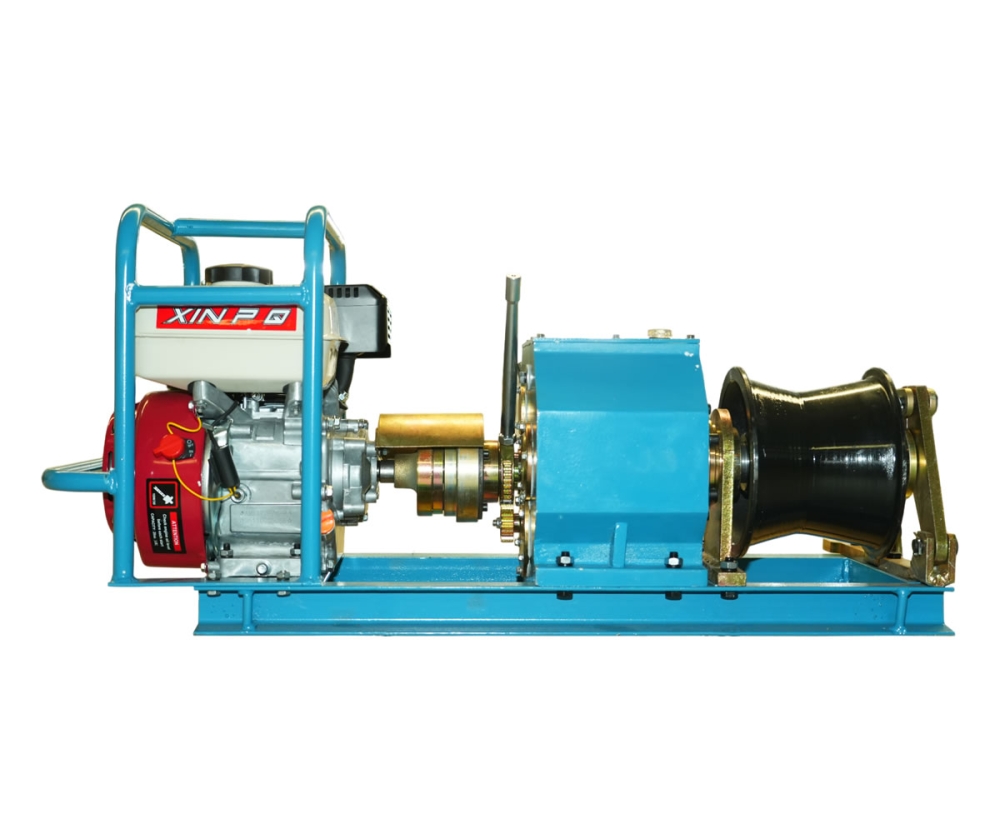

Cable Pulling Winch Machine, JM-XJ3-Q, 30 kN
- Drive System:
- Gasoline
- Max Pull:
- 30kN
- Pulling Speed:
- 5 m/min
Key Features：
1、This Cable Pulling Winch is powered by a gasoline engine and features a lightweight structural design with a simple starting method, allowing cable pulling operations to be carried out even in areas without access to electricity.
2、This machine is available in three optional versions: gasoline, diesel, and Pro diesel.
3. With a rated pulling force of 30 kN, this machine is suitable for small- to medium-load pulling operations using wire ropes or pulling ropes.
4、Equipped with 4 forward gears and 2 reverse gears, this machine provides more flexible rope take-up and pay-out control, making it suitable for various cable laying construction projects.
| Model: | JM-XJ3-Q |
| Drive System: | Gasoline |
| Control Mode: | Manual Control |
| Motor Power: | — |
| Rated Pull: | 30kN |
| Max Pull: | 30kN |
| Gearbox: | 4 Forward + 2 Reverse |
| Braking System: | Mechanical Brake |
| Transmission Type: | Shaft Drive |
| Pulling Speed: | 5 m/min |
| Dimensions: | 95 × 45 × 45 cm |
| Net Weight: | 90 kg |
| Gear Position | Pulling Force | Pulling Speed |
|---|---|---|
| 1st Forward Gear | 30 kN | 5 m/min |
| 2nd Forward Gear | 18 kN | 9 m/min |
| 3rd Forward Gear | 10 kN | 19 m/min |
| 4th Forward Gear | 5 kN | 28 m/min |
| 1st Reverse Gear | — | 9 m/min |
| 2nd Reverse Gear | — | 13 m/min |
| # | Model | Drive System | Rated Pull | Max Pull | Pulling Speed | Net Weight | View |
|---|---|---|---|---|---|---|---|
| 1 | JM-XJ8-C | Diesel | 80kN | 80kN | 5.9 m/min | 174 kg | View |
| 2 | JM-XJ5PLUS-C | Diesel | 50kN | 50kN | 8 m/min | 162 kg | View |
| 3 | JM-XJ5S-C | Diesel | 50kN | 50kN | 6 m/min | 289 kg | View |
| 4 | JM-XJ5-C | Diesel | 50kN | 50kN | 4.5 m/min | 157 kg | View |
| 5 | JM-XJ3Pro-C | Diesel | 25kN | 25kN | 13 m/min | 135 kg | View |
| 6 | JM-XJ3-Q | Gasoline | 30kN | 30kN | 5 m/min | 90 kg | View |
