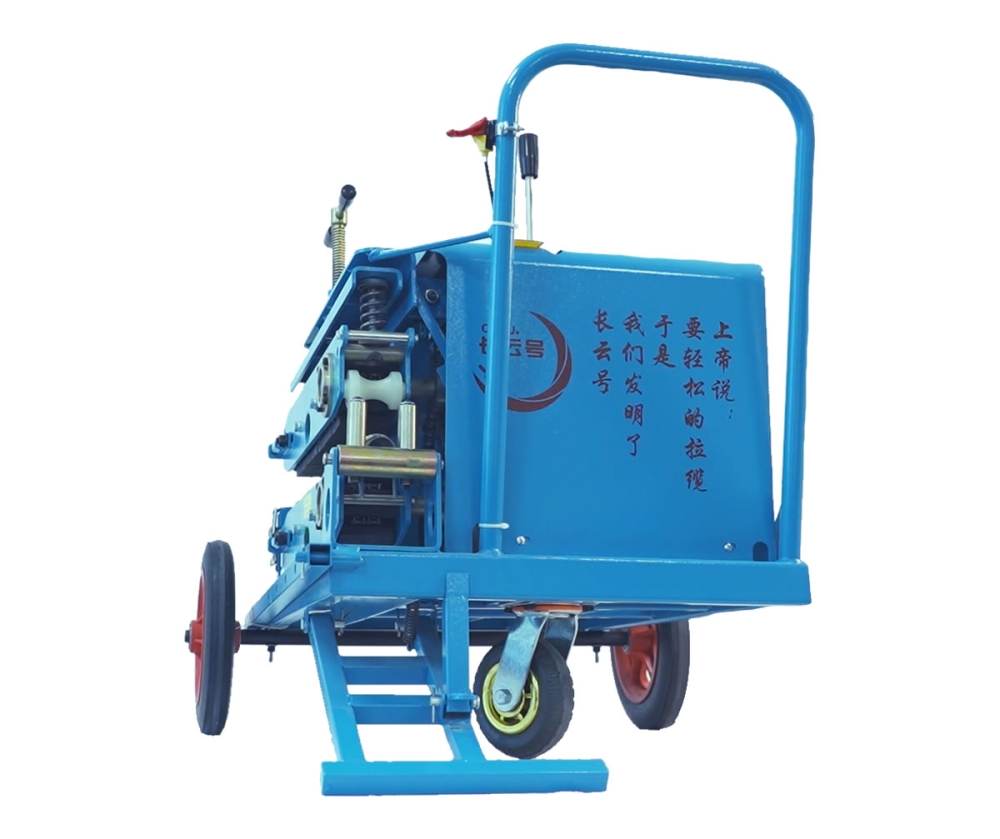

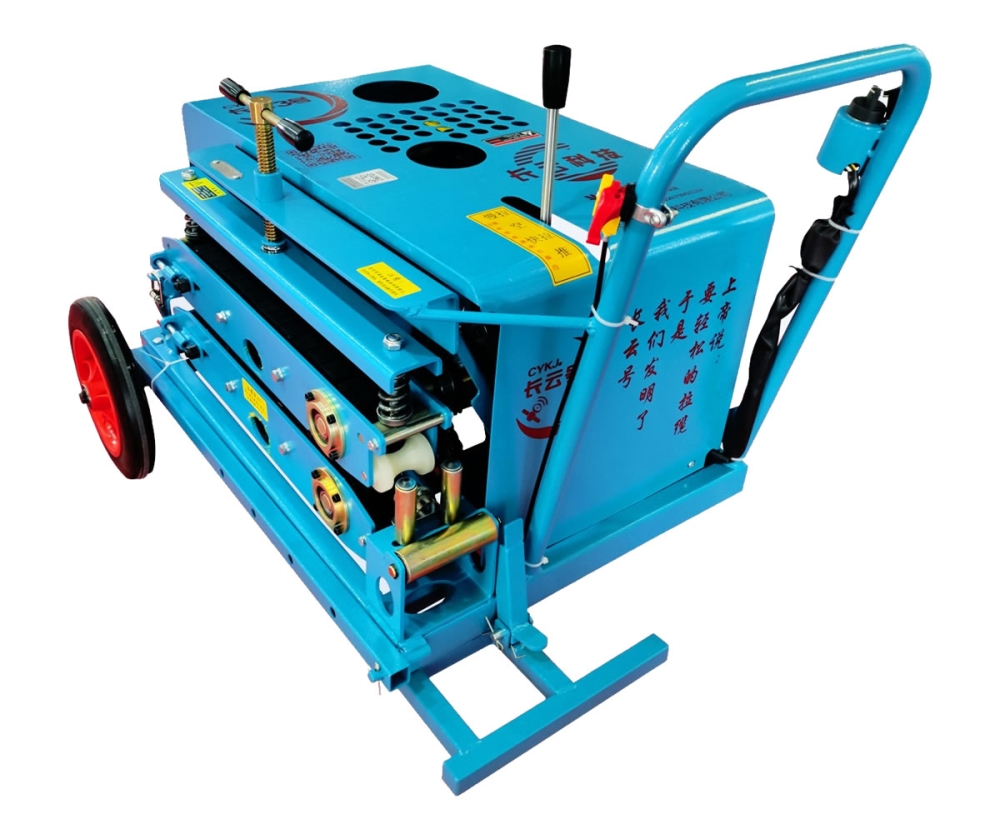

Fiber Optic Cable Puller Machine, QY-CY3-Q, 3000 N, Cable Laying Equipment
- Drive System:
- Gasoline
- Fiber Count:
- 4–288 Fibers
- Pulling Force:
- 3000 N
- Pulling Speed:
- 0–80 m/min
Key Features：
1. The QY-CY3-Q Series is offered in two variants: the QY-CY3-Q (Rubber Track Version) and the QY-CY3P-Q (Rubber Belt Version). Both models share the same core design and specifications, with the main difference being the clamping medium used for gripping and pulling fiber optic cables.
2、The QY-CY3P-Q (Rubber Belt Version) is recommended for fiber optic cables with thinner jackets, as its softer belt clamping medium provides gentler cable handling and reduces the risk of jacket damage.
3、This Fiber Optic Cable Puller is an upgraded version of the QY-CY1-Q model. The original recoil-start system has been upgraded to a dual-start system featuring both electric start and recoil start, ensuring more convenient and reliable operation.
4、The machine utilizes an upper-and-lower rubber track clamping system to grip and pull fiber optic cables during installation operations.
5、With a pulling force of 3000 N, the upper-and-lower rubber track clamping system provides reliable non-slip traction while protecting the fiber optic cable jacket from damage during pulling operations.
6、Powered by a gasoline engine, this model is ideal for fiber optic cable installation in off-grid areas, allowing work to proceed even when no external power source or generator is available.
7、With a net weight of only 105 kg, the machine features a lightweight design and can be easily pushed into the work area, eliminating the need for manual carrying and transport.
| Model: | QY-CY3-Q |
| Drive System: | Gasoline |
| Control Mode: | Manual Control |
| Speed Control: | 4-Speed Control |
| Motor Power: | — |
| Fiber Count: | 4–288 Fibers |
| Clamping Opening: | 4cm |
| Traction Type: | Rubber Track |
| Clamping Type: | Vertical Clamping |
| Pulling Force: | 3000 N |
| Pulling Speed: | 0–80 m/min |
| Starting Method: | Electric & Recoil Start |
| Dimensions: | 101 × 80 × 80 cm |
| Net Weight: | 110 kg |
| # | Model | Drive System | Fiber Count | Pulling Force | Pulling Speed | Net Weight | View |
|---|---|---|---|---|---|---|---|
| 1 | QY-CY7-Q | Gasoline | 4–288 Fibers | 4200 N | 0–80 m/min | 115 kg | View |
| 2 | QY-CY5-Q | Gasoline | 4–288 Fibers | 4200 N | 0–80 m/min | 109 kg | View |
| 3 | QY-CY3-Q | Gasoline | 4–288 Fibers | 3000 N | 0–80 m/min | 110 kg | View |
| 4 | QY-CY1P-Q | Gasoline | 4–288 Fibers | 3000 N | 0–80 m/min | 105 kg | View |
| 5 | QY-CY1-Q | Gasoline | 4–288 Fibers | 3000 N | 0–80 m/min | 105 kg | View |
