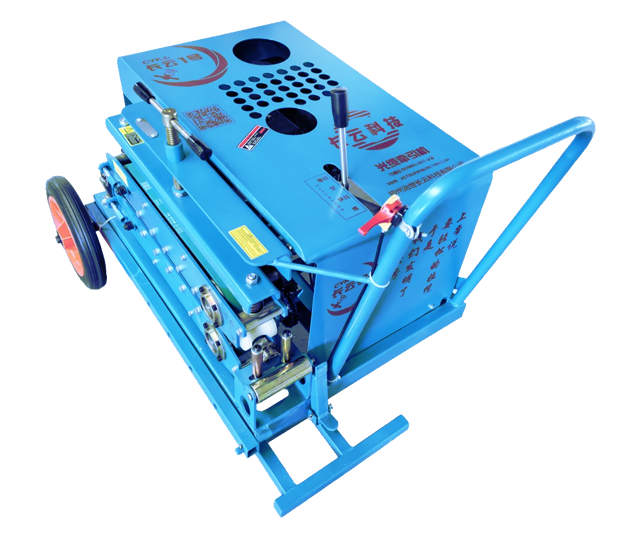

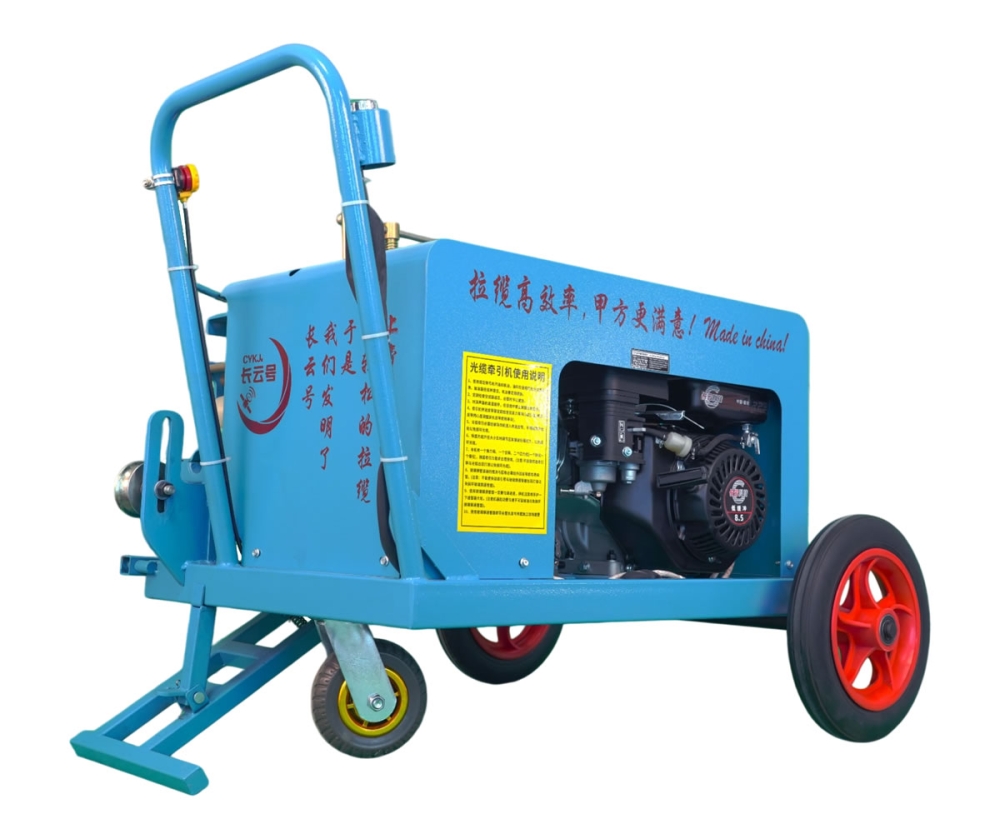

Fiber Optic Cable Puller Machine, QY-CY1P-Q, Pulling Force 3000 N, Cable Laying Equipment
- Drive System:
- Gasoline
- Fiber Count:
- 4–288 Fibers
- Pulling Force:
- 3000 N
- Pulling Speed:
- 0–80 m/min
Key Features：
1、The QY-CY1P-Q Fiber Optic Cable Puller utilizes a belt clamping medium. The soft belt surface provides gentle cable handling, reducing the risk of damage to the jackets of smaller and thinner fiber optic cables during installation.
2、With a pulling force of 3000 N, the upper-and-lower rubber track clamping system delivers reliable traction without slippage while protecting the fiber optic cable jacket from damage throughout the installation process.
3、Powered by a gasoline engine, this model is ideal for fiber optic cable installation in off-grid areas, allowing work to proceed even when no external power source or generator is available.
4、With a net weight of only 105 kg, the machine features a lightweight design and can be easily pushed into the work area, eliminating the need for manual lifting and transport.
| Model: | QY-CY1P-Q |
| Drive System: | Gasoline |
| Control Mode: | Manual Control |
| Speed Control: | 4-Speed Control |
| Motor Power: | — |
| Fiber Count: | 4–288 Fibers |
| Clamping Opening: | 4cm |
| Traction Type: | Rubber Belt |
| Clamping Type: | Vertical Clamping |
| Pulling Force: | 3000 N |
| Pulling Speed: | 0–80 m/min |
| Starting Method: | Recoil Start |
| Dimensions: | 101 × 80 × 80 cm |
| Net Weight: | 105 kg |
| # | Model | Drive System | Fiber Count | Pulling Force | Pulling Speed | Net Weight | View |
|---|---|---|---|---|---|---|---|
| 1 | QY-CY7-Q | Gasoline | 4–288 Fibers | 4200 N | 0–80 m/min | 115 kg | View |
| 2 | QY-CY5-Q | Gasoline | 4–288 Fibers | 4200 N | 0–80 m/min | 109 kg | View |
| 3 | QY-CY3-Q | Gasoline | 4–288 Fibers | 3000 N | 0–80 m/min | 110 kg | View |
| 4 | QY-CY1P-Q | Gasoline | 4–288 Fibers | 3000 N | 0–80 m/min | 105 kg | View |
| 5 | QY-CY1-Q | Gasoline | 4–288 Fibers | 3000 N | 0–80 m/min | 105 kg | View |
