Model:
JM-LS3-JL

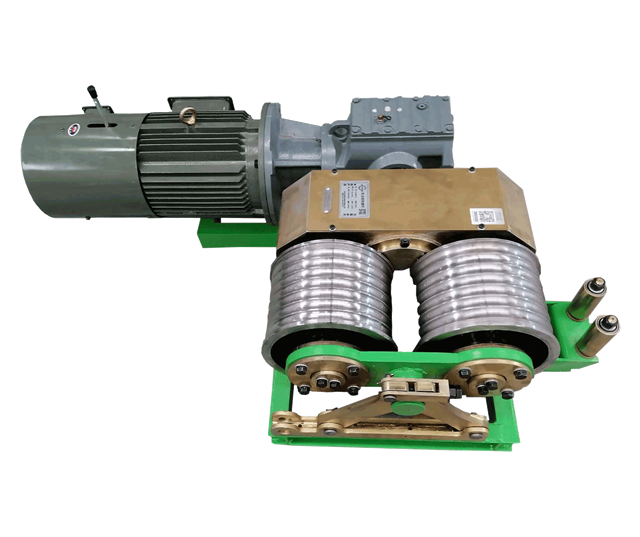

Cable Pulling Winch Machine, JM-LS3-JL, 35 kN
- Drive System:
- Electric
- Max Pull:
- 35kN
- Pulling Speed:
- 4-20 m/min
Key Features：
1、This Cable Pulling Winch is equipped with an electromagnetic braking system, which automatically locks the machine instantly during emergency shutdown or power failure to help prevent accidents.
2、The thickened dual-drum design allows two wire ropes to be operated simultaneously for pulling work.
3、This model is equipped with an automatic tensioning structure, which can automatically adjust as the working load changes, reducing the need for frequent manual adjustment.
| Model: | JM-LS3-JL |
| Drive System: | Electric |
| Input Voltage: | AC 380V / Custom Voltage |
| Control Mode: | Control Panel / Remote Control |
| Speed Control: | Stepless Speed Regulation |
| Motor Power: | 7500 W |
| Rated Pull: | 30kN |
| Max Pull: | 35kN |
| Gearbox: | N/A |
| Braking System: | Automatic Power-Off Brake |
| Transmission Type: | Shaft Drive |
| Pulling Speed: | 4-20 m/min |
| Dimensions: | 135 × 74 × 37 cm |
| Net Weight: | 345 kg |
| Gear Position | Pulling Force | Pulling Speed |
|---|---|---|
| N/A | 35 kN | 4-20 m/min |
| N/A | 30 kN | 12.7 m/min |
| N/A | 25 kN | 16m m/min |
| N/A | 20 kN | 20 m/min |
| # | Model | Drive System | Rated Pull | Max Pull | Pulling Speed | Net Weight | View |
|---|---|---|---|---|---|---|---|
| 1 | JM-LS3-JL | Electric | 30kN | 35kN | 4-20 m/min | 345 kg | View |
