Model:
JM-LJ5-JL

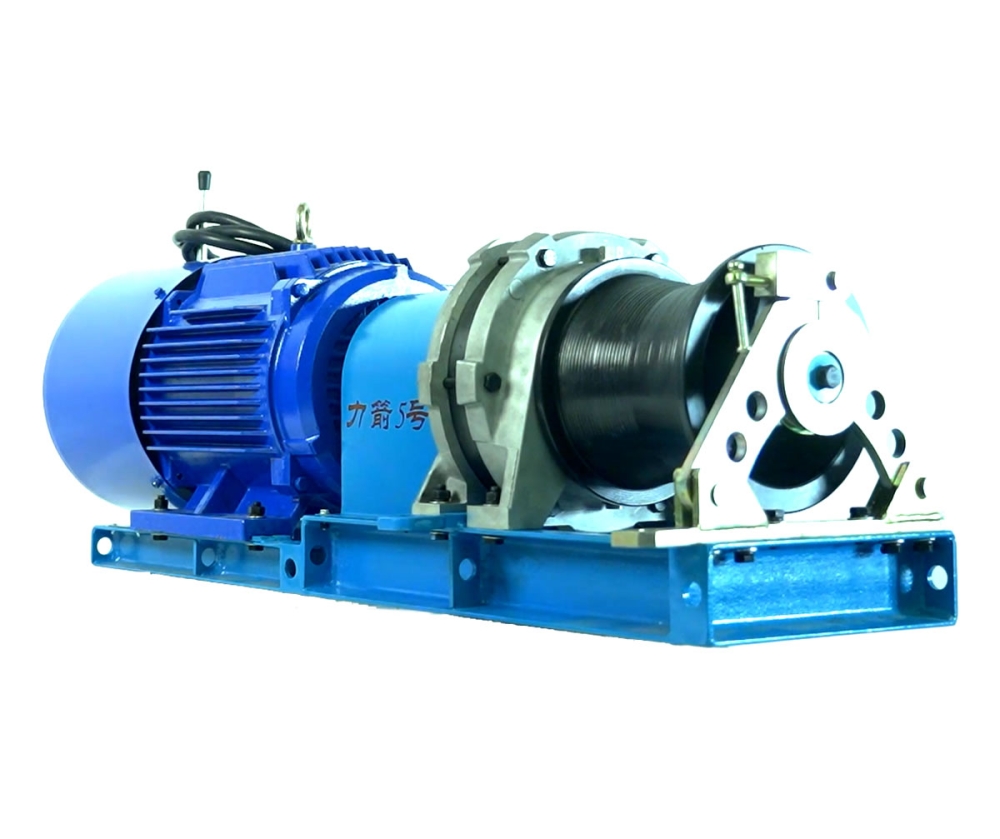

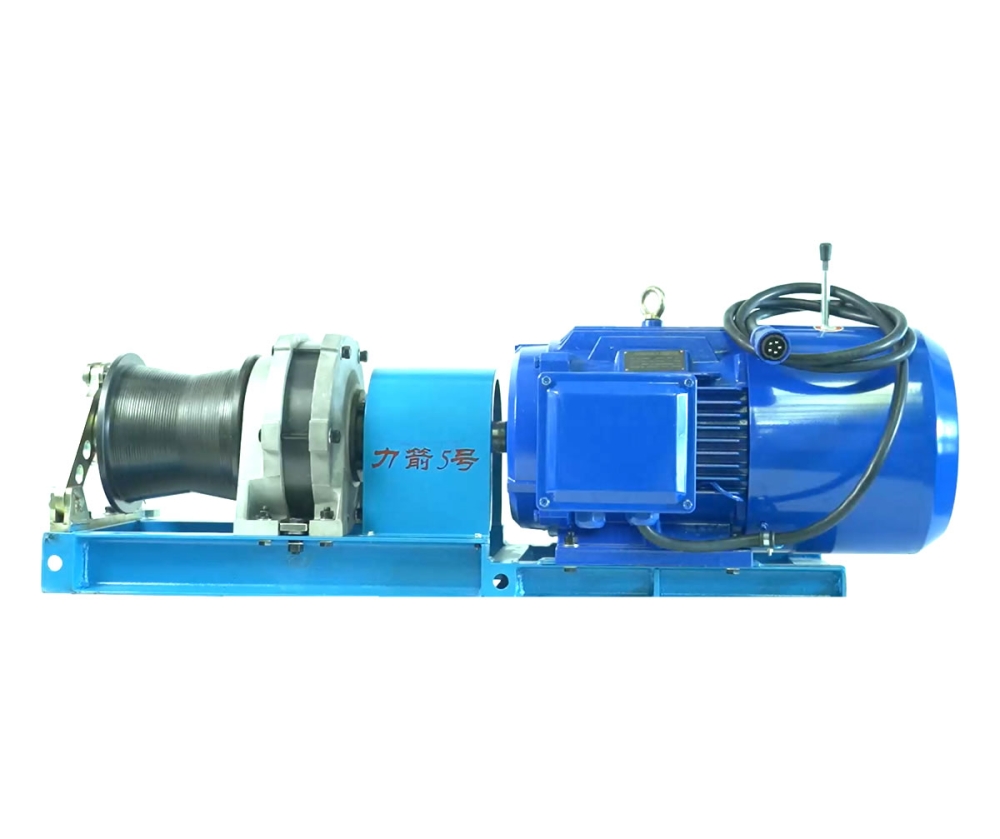

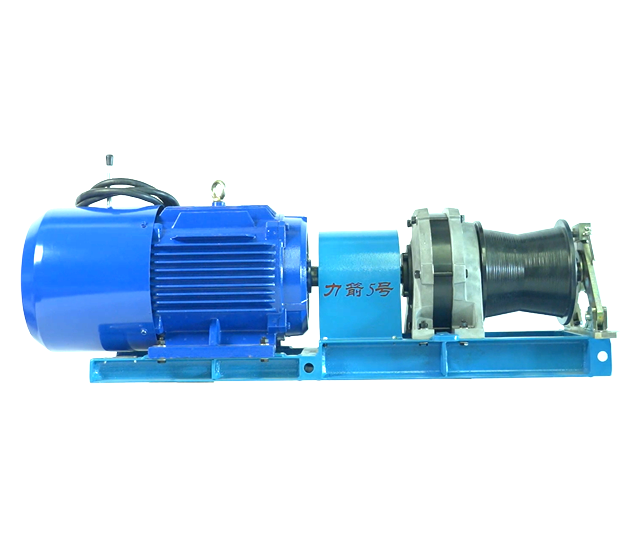

Cable Pulling Winch Machine, JM-LJ5-JL, 40 kN
- Drive System:
- Electric
- Max Pull:
- 40kN
- Pulling Speed:
- 0–80 m/min
Key Features：
1、This Cable Pulling Winch is an upgraded version of the JM-LJ4-JL model, with the maximum pulling force increased to 40 kN. It is also suitable for overhead transmission line conductor stringing projects.
2、The motor power has been upgraded to 7.5 kW, providing stronger power output and improved endurance for long-duration operation.
3、With a pulling speed range of 4–20 m/min, the machine runs more smoothly during low-speed, heavy-load pulling operations.
| Model: | JM-LJ5-JL |
| Drive System: | Electric |
| Input Voltage: | AC 380V / Custom Voltage |
| Control Mode: | Control Panel / Remote Control |
| Speed Control: | 4-Speed Control / Stepless Speed Regulation |
| Motor Power: | 7500 W |
| Rated Pull: | 32KN |
| Max Pull: | 40kN |
| Gearbox: | 4 Forward |
| Braking System: | Automatic Power-Off Brake |
| Transmission Type: | Shaft Drive |
| Pulling Speed: | 0–80 m/min |
| Dimensions: | 119 × 47 × 43 cm |
| Net Weight: | 220 kg |
| Gear Position | Pulling Force | Pulling Speed |
|---|---|---|
| 1st Forward Gear | — | 6 m/min |
| 2nd Forward Gear | — | 10 m/min |
| 3rd Forward Gear | — | 16 m/min |
| 4th Forward Gear | — | 20 m/min |
| # | Model | Drive System | Rated Pull | Max Pull | Pulling Speed | Net Weight | View |
|---|---|---|---|---|---|---|---|
| 1 | JM-LJ5-JL | Electric | 32KN | 40kN | 0–80 m/min | 220 kg | View |
| 2 | JM-LJ4-JL | Electric | 24KN | 30kN | 4-20 m/min | 170 kg | View |
