Model:
JM-BX-JL

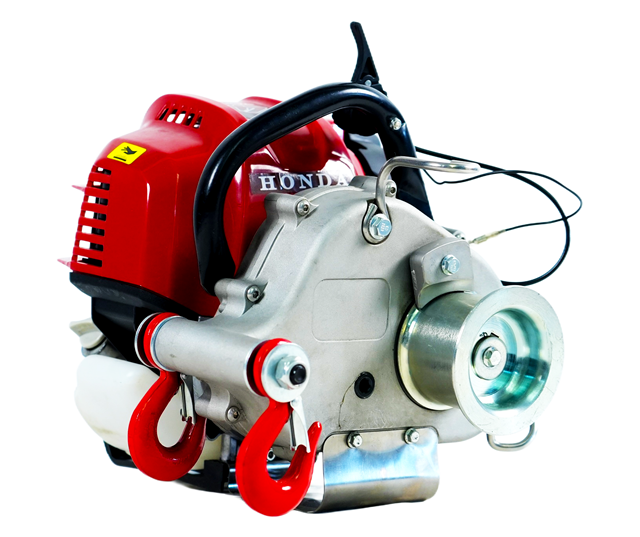

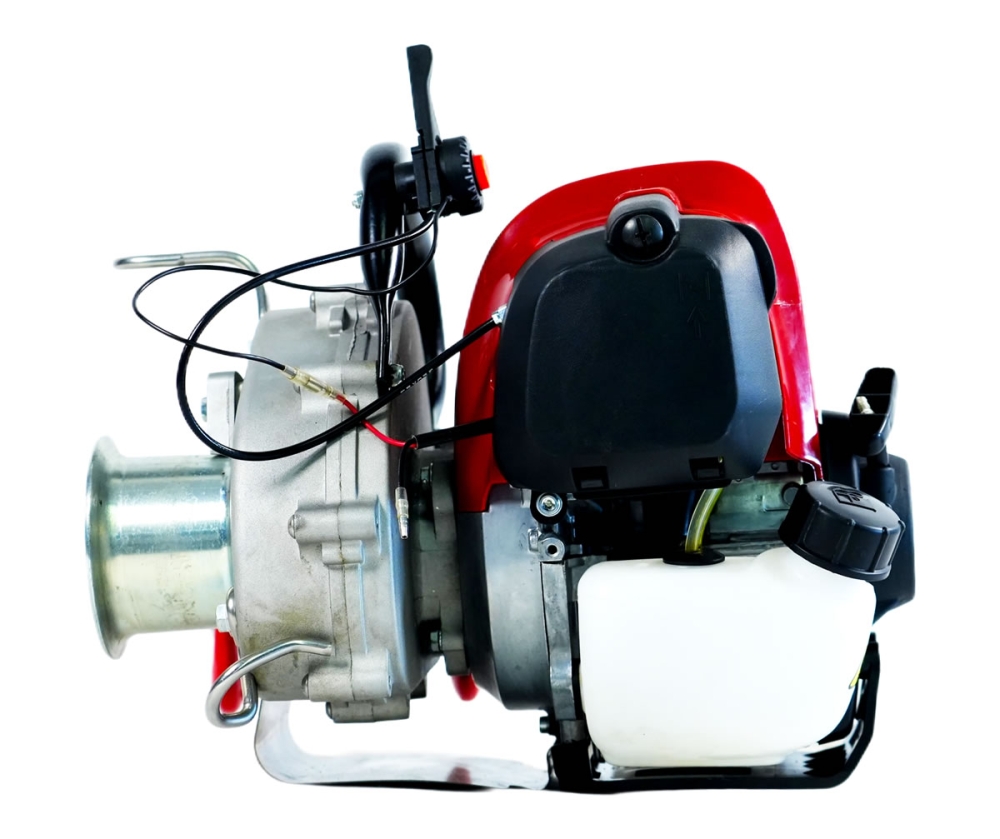

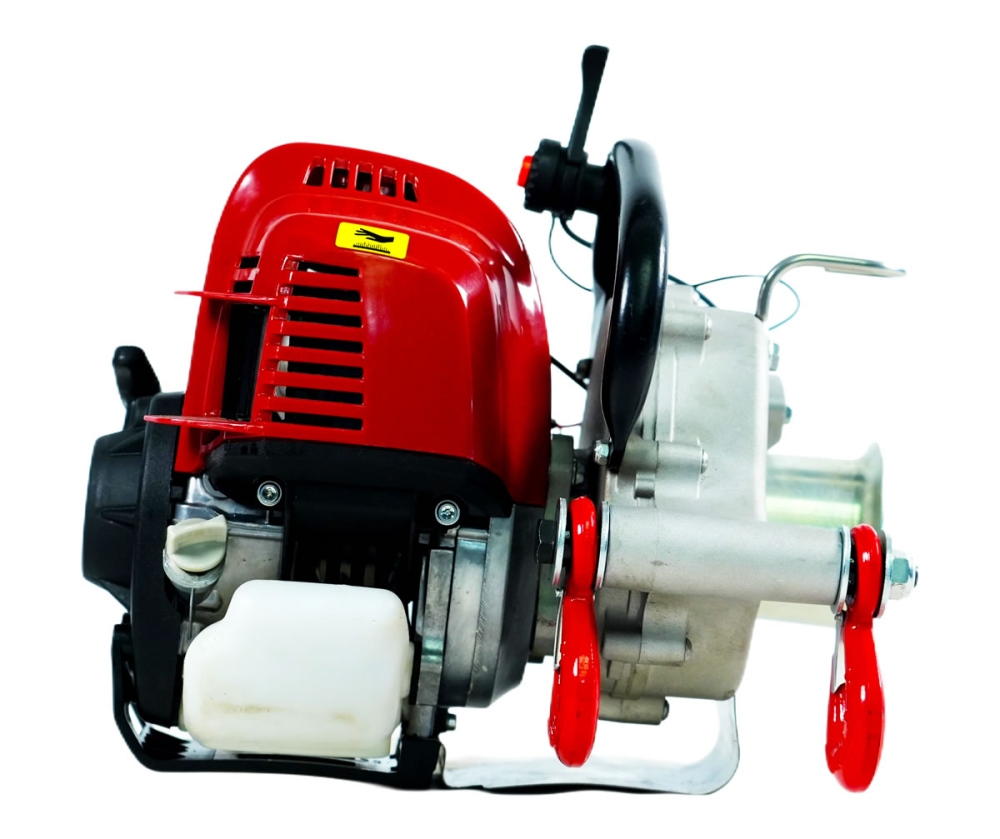

Cable Pulling Winch Machine, JM-BX-JL, 8.5 kN
- Drive System:
- Gasoline
- Max Pull:
- 8.5kN
- Pulling Speed:
- 5 m/min
Key Features：
1、This Cable Pulling Winch weighs only 9 kg and can be carried with one hand by an adult, making it easy to transport and suitable for a wider range of applications.

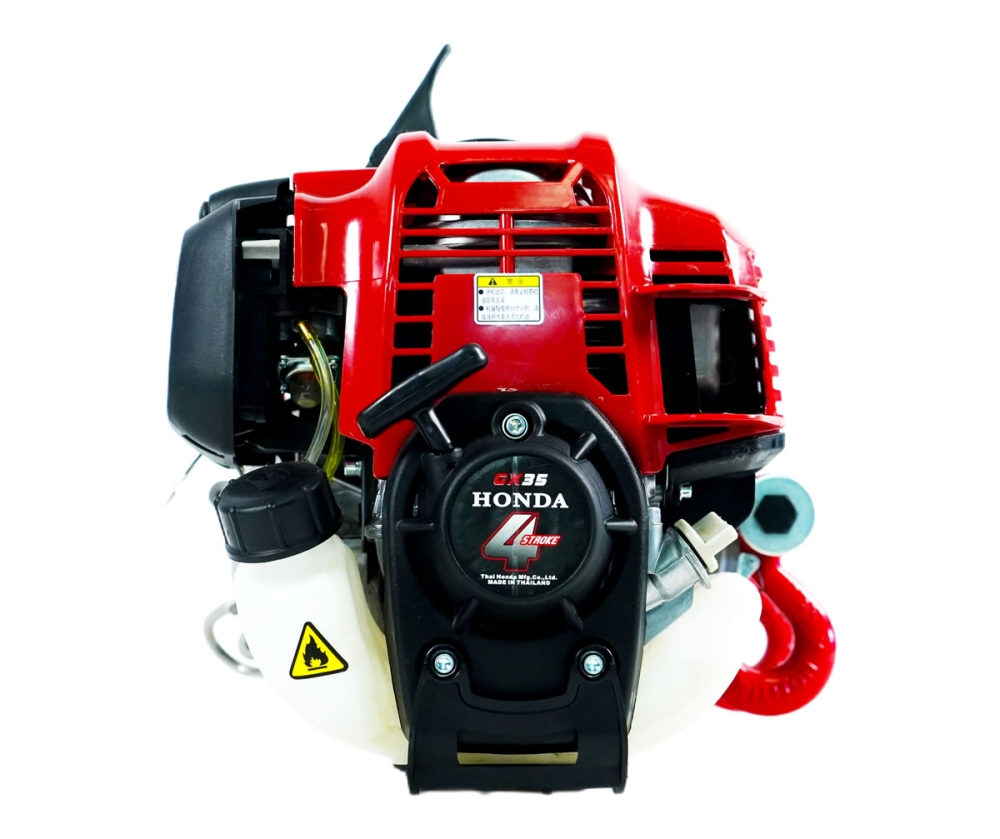

2、This model is powered by a gasoline engine, allowing it to operate normally in construction sites without access to electricity.
3、With overall dimensions of only 35 × 27 × 28 cm, the machine features a compact structure, small footprint, and simple operation.
| Model: | JM-BX-JL |
| Drive System: | Gasoline |
| Motor Power: | — |
| Rated Pull: | 8.5kN |
| Max Pull: | 8.5kN |
| Gearbox: | 2 Forward |
| Pulling Speed: | 5 m/min |
| Dimensions: | 35 × 27 × 28 cm |
| Net Weight: | 9 kg |
| Gear Position | Pulling Force | Pulling Speed |
|---|---|---|
| 1st Forward Gear | 5.3 kN | 8 m/min |
| 2nd Forward Gear | 8.5 kN | 5 m/min |
| # | Model | Drive System | Rated Pull | Max Pull | Pulling Speed | Net Weight | View |
|---|---|---|---|---|---|---|---|
| 1 | JM-BX-JL | Gasoline | 8.5kN | 8.5kN | 5 m/min | 9 kg | View |
