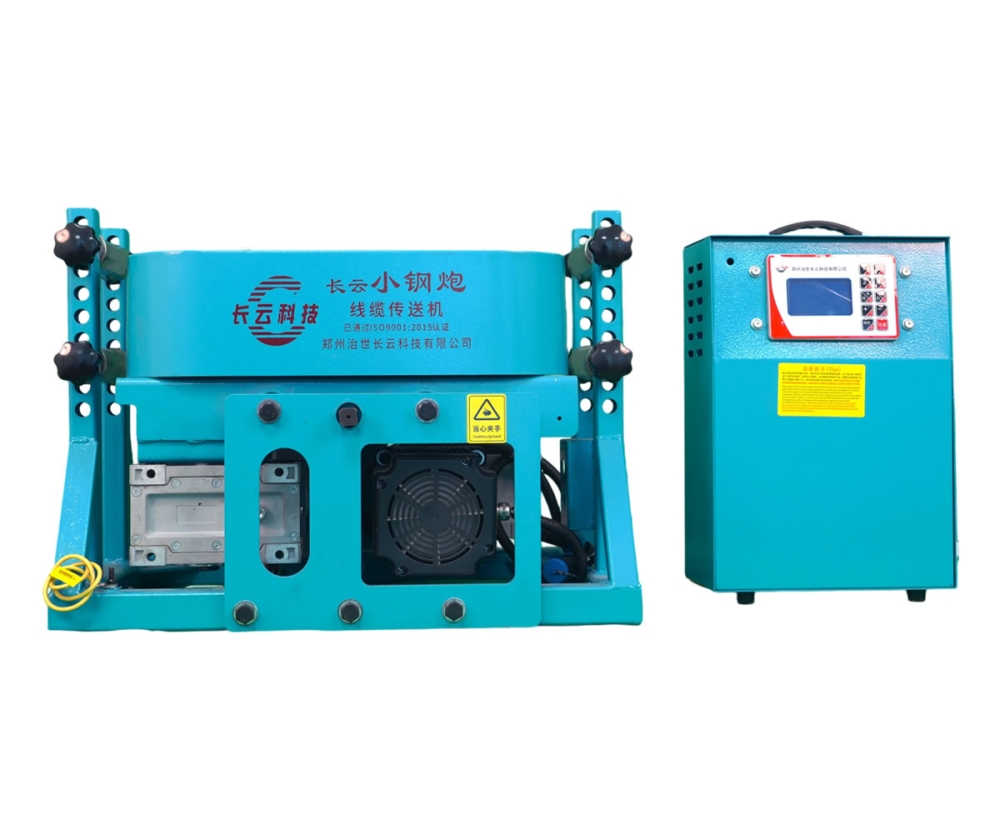

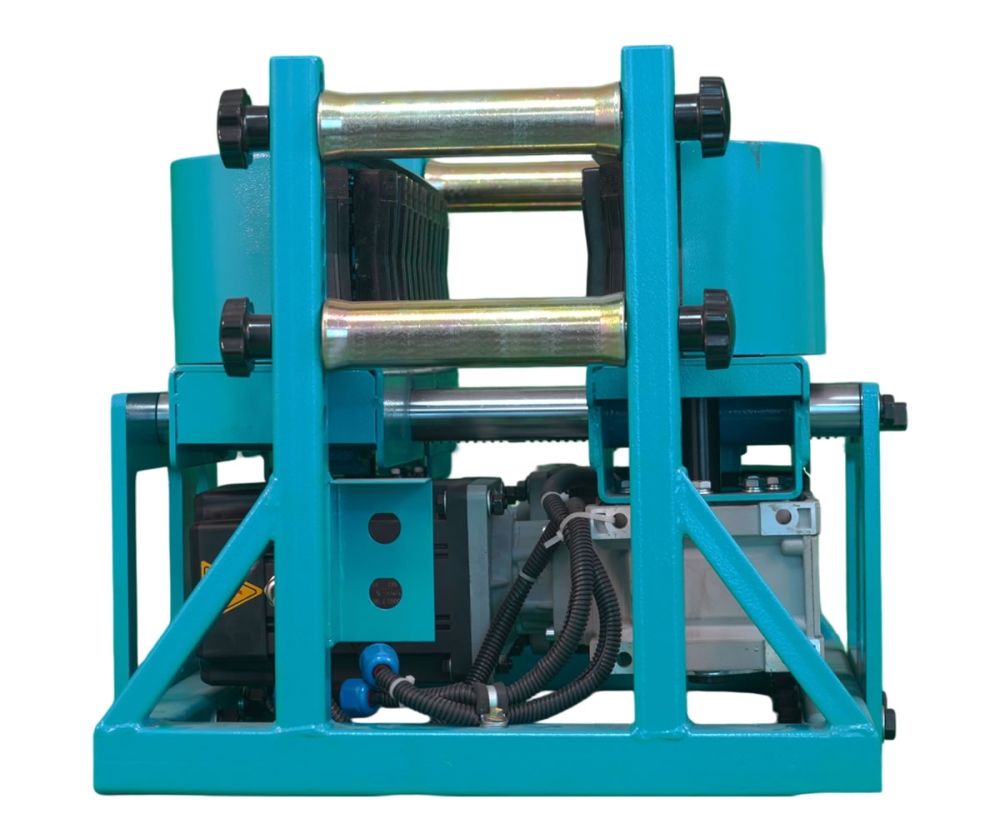

Cable Feeder, SS-XGP-JL, 8000 N, Cable Laying Equipment
- Drive System:
- Electric
- Max Push:
- 8000 N
- Pushing Speed:
- 4–20 m/min
- Cable Size:
- 1-18cm
Key Features：
1、With compact dimensions of 60 × 54 × 44 cm, this Cable Feeder is approximately 60% the size of conventional cable pushers. Weighing only 100 ± 2 kg, it can be easily transported by two operators.
2、The machine supports both 4-Speed Control and Stepless Speed Regulation. The pulling direction can be switched instantly between pushing and pulling modes via either the control panel or remote control.
3、The machine is equipped with both a control panel and a remote control, providing flexible and convenient operation for different jobsite requirements.
4、The machine supports Synchronized Control and Constant Speed Control for multi-unit operation. When multiple machines are connected in series, all units can start and stop simultaneously while maintaining a preset pushing speed in Constant Speed Control mode, ensuring smooth and synchronized cable installation.
| Model: | SS-XGP-JL |
| Drive System: | Electric |
| Input Voltage: | AC 380V / Custom Voltage |
| Control Mode: | Control Panel / Remote Control |
| Speed Control: | 4-Speed Control / Stepless Speed Regulation |
| Motor Power: | 1500 W × 2 |
| Pushing Force: | — |
| Rated Push: | 6000 N |
| Max Push: | 8000 N |
| Pushing Speed: | 4–20 m/min |
| Cable Size: | 1-18cm |
| Sync Control: | Available |
| Constant Speed Control: | Available |
| Dimensions: | 60 × 54 × 44 cm |
| Net Weight: | 100 kg |
| # | Model | Drive System | Max Push | Pushing Speed | Cable Size | Net Weight | View |
|---|---|---|---|---|---|---|---|
| 1 | SS-XGP-JL | Electric | 8000 N | 4–20 m/min | 1-18cm | 100 kg | View |
