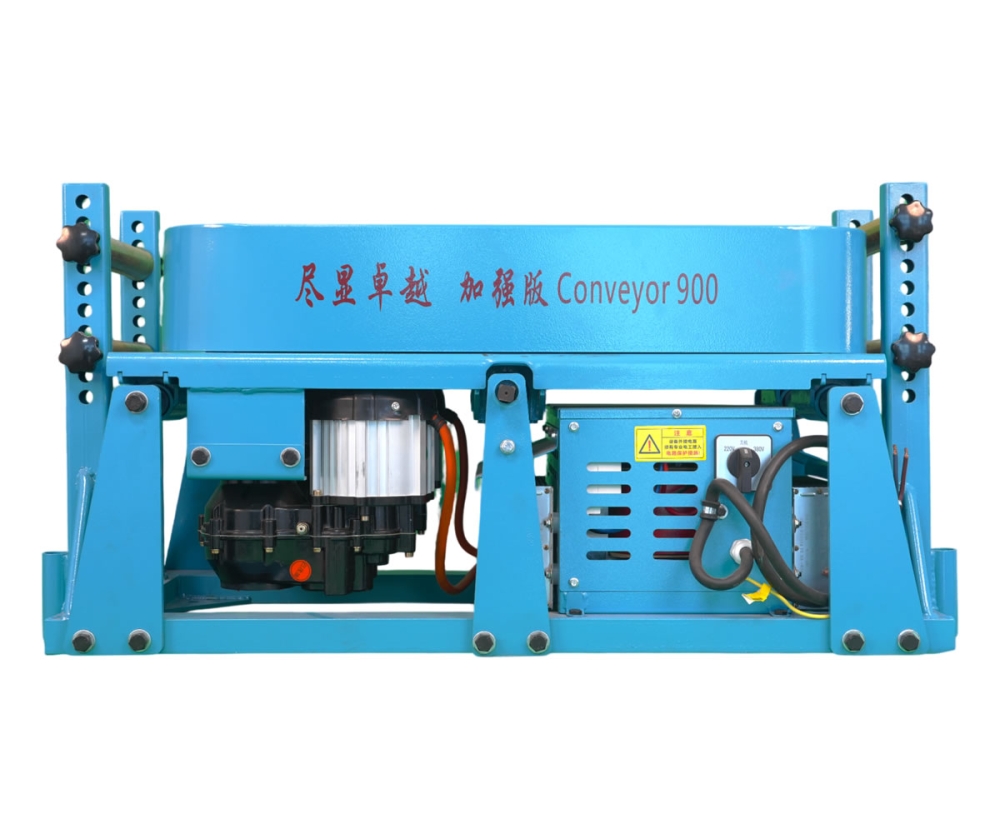

Cable Feeder, SS-JQ900PLUS-ZL, 8000 N, Cable Laying Equipment
- Drive System:
- Electric
- Max Push:
- 8000 N
- Pushing Speed:
- 4–20 m/min
- Cable Size:
- 2-24cm
Key Features：
1、This Cable Feeder is an upgraded version of the SS-JQ900-ZL model. It features a one-touch dual-voltage switching system (AC 380V / AC 220V), allowing the machine to adapt to different power supply standards used in cable installation projects worldwide, without the need for an external transformer.

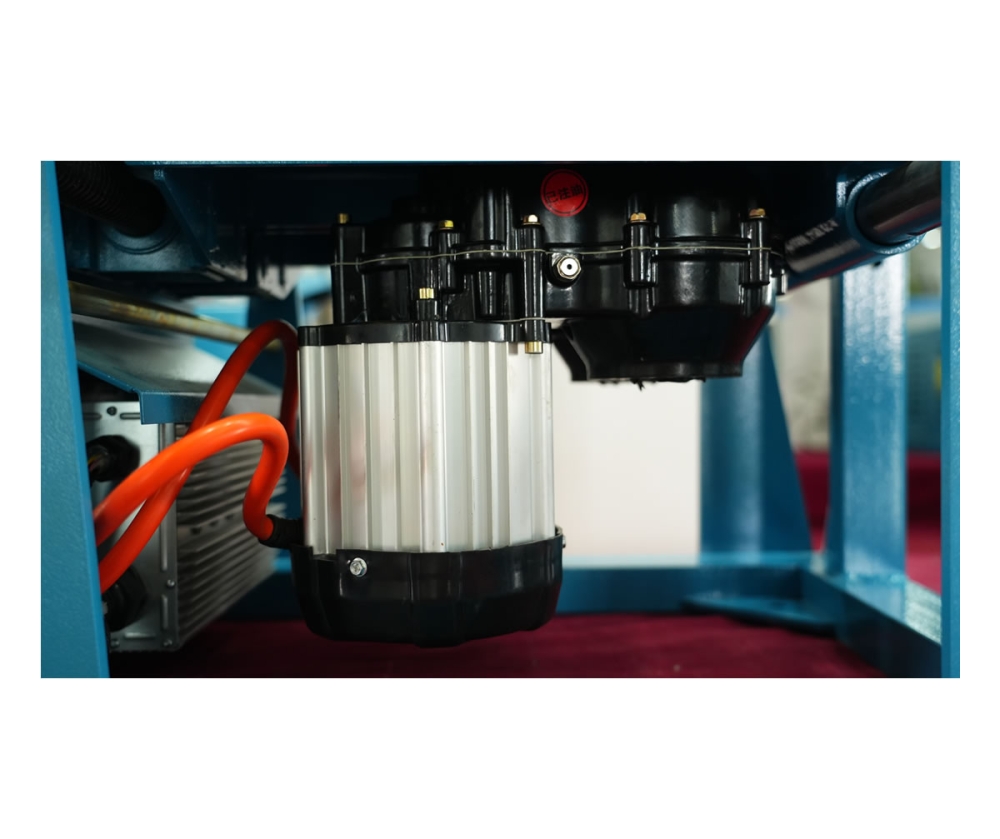

2、Equipped with a dual-motor drive system and delivering up to 8000 N of pushing force, this model is specifically designed for the installation of large-diameter cables ranging from 20 mm to 240 mm.

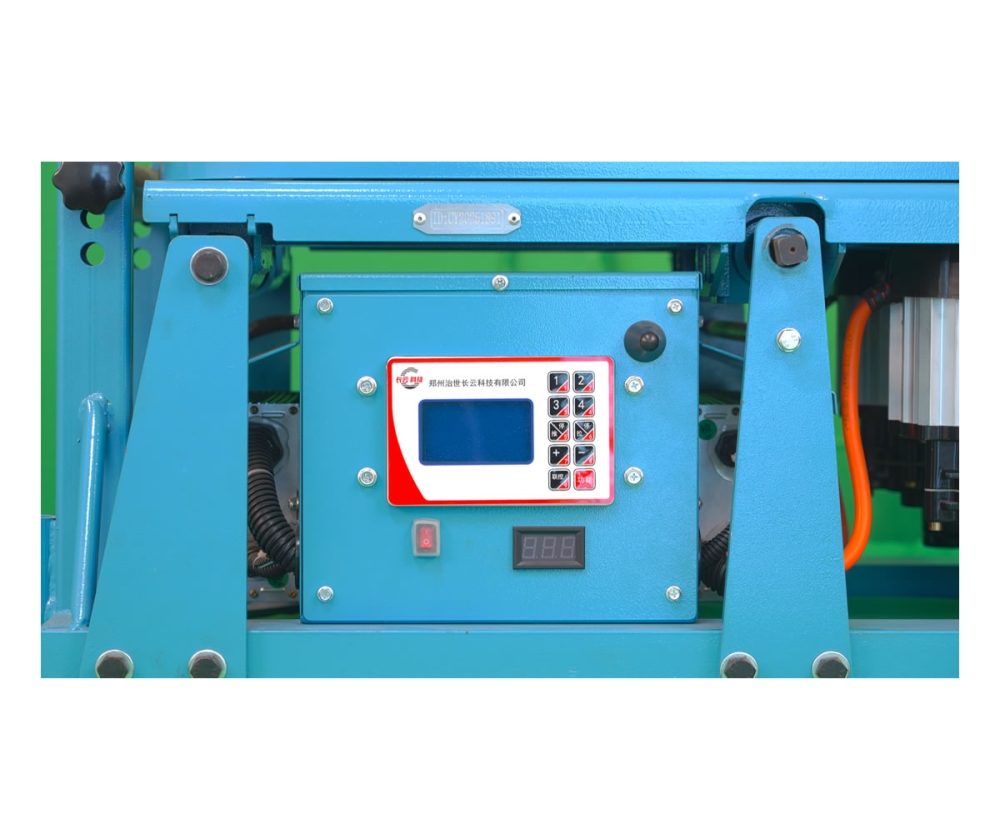

3、The machine is equipped with both a control panel and a remote control, providing flexible and convenient operation for different jobsite requirements.
4、The machine supports Synchronized Control and Constant Speed Control for multi-unit operation. When multiple machines are connected in series, all units can start and stop simultaneously while maintaining a preset pushing speed in Constant Speed Control mode, ensuring smooth and synchronized cable installation.
| Model: | SS-JQ900PLUS-ZL |
| Drive System: | Electric |
| Input Voltage: | AC 220V / AC 380V / Custom Voltage |
| Control Mode: | Control Panel / Remote Control |
| Speed Control: | 4-Speed Control / Stepless Speed Regulation |
| Motor Power: | 1800 W × 2 |
| Pushing Force: | — |
| Rated Push: | 6000 N |
| Max Push: | 8000 N |
| Pushing Speed: | 4–20 m/min |
| Cable Size: | 2-24cm |
| Sync Control: | Available |
| Constant Speed Control: | Available |
| Dimensions: | 100 × 56.6 × 54 cm |
| Net Weight: | 214 kg |
| # | Model | Drive System | Max Push | Pushing Speed | Cable Size | Net Weight | View |
|---|---|---|---|---|---|---|---|
| 1 | SS-JQ900PLUS-ZL | Electric | 8000 N | 4–20 m/min | 2-24cm | 214 kg | View |
| 2 | SS-JQ900-ZL | Electric | 8000 N | 4–20 m/min | 2-24cm | 210 kg | View |
