Model:
SS-CY8-JL

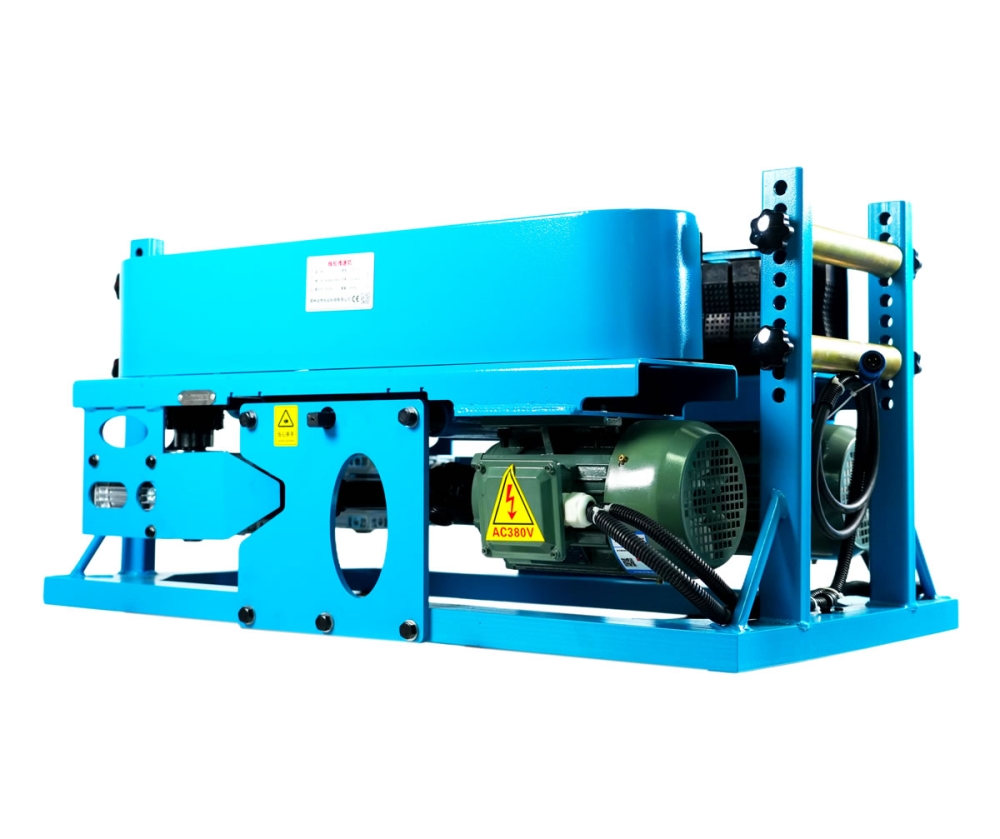

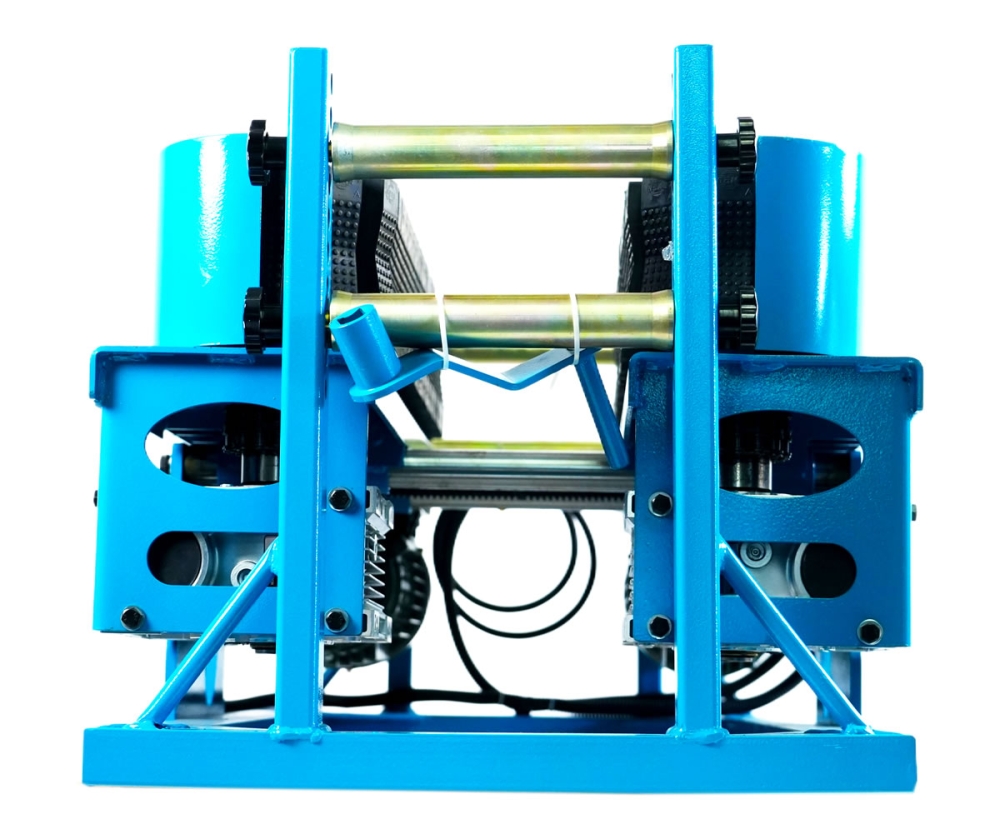

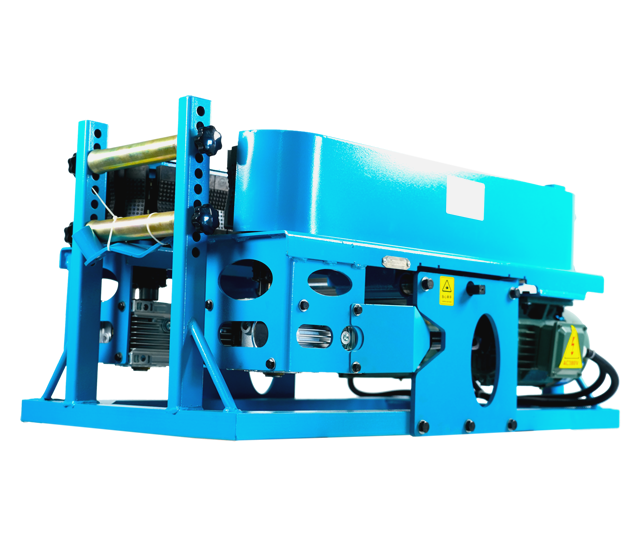

Cable Feeder, SS-CY8-JL, 6000 N, Cable Laying Equipment
- Drive System:
- Electric
- Max Push:
- 6000 N
- Pushing Speed:
- 19 m/min
- Cable Size:
- 2-24cm
Key Features：
1、Operating at a fixed pushing speed of 19 m/min, the machine is controlled through simple Start/Stop buttons on the control box, providing easy and user-friendly operation.
2、With a maximum pushing force of 6000 N, it is designed for installing large-diameter cables from 20 mm to 240 mm.
3、With a net weight of 243 kg, the machine features a robust and stable structure, making it ideal for continuous heavy-duty cable pushing operations.
| Model: | SS-CY8-JL |
| Drive System: | Electric |
| Input Voltage: | AC 380V / Custom Voltage |
| Control Mode: | Manual Control |
| Speed Control: | Fixed Speed |
| Motor Power: | 1500 W × 2 |
| Pushing Force: | — |
| Rated Push: | 5000 N |
| Max Push: | 6000 N |
| Pushing Speed: | 19 m/min |
| Cable Size: | 2-24cm |
| Sync Control: | Customizable |
| Dimensions: | 116 × 58 × 53 cm |
| Net Weight: | 243 kg |
| # | Model | Drive System | Max Push | Pushing Speed | Cable Size | Net Weight | View |
|---|---|---|---|---|---|---|---|
| 1 | SS-CY8DS-JL | Electric | 8000 N | 12 m/min | 2-24cm | 243 kg | View |
| 2 | SS-CY8-JL | Electric | 6000 N | 19 m/min | 2-24cm | 243 kg | View |
