Model:
SA-ZQY-2×60

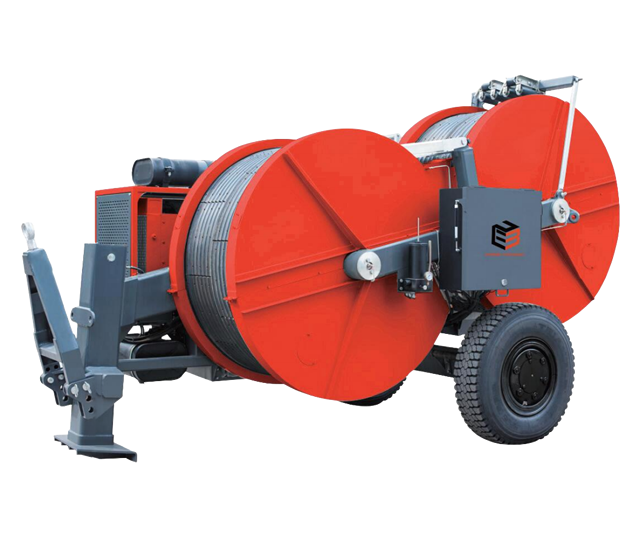

Hydraulic Puller-Tensioner, SA-ZQY-2×60, 2×60 kN Transmission Line Stringing
- Max Continuous Pull:
- 2×60kN/1×120kN
- Max Continuous Tension:
- 2×60kN/1×120kN
- Max Pay-Off Speed:
- 5 km/h
- Tension Wheel Dia.:
- 1600 mm
- Conductor Size:
- ≤900 mm²
| Model: | SA-ZQY-2×60 |
| Max Continuous Pull: | 2×60kN/1×120kN |
| Max Intermittent Pull: | 2×70kN/1×140kN |
| Corresponding Speed: | 2.5km/h |
| Corresponding Pull: | — |
| Max Intermittent Tension: | 2×70kN/1×140kN |
| Max Continuous Tension: | 2×60kN/1×120kN |
| Max Pay-Off Speed: | 5 km/h |
| Corresponding Tension: | 2×30kN/1×60kN |
| Max Pullback Speed: | 5km/h |
| Tension Wheel Dia.: | 1600 mm |
| Max Conductor Dia.: | 40 mm |
| Hydraulic Power Output: | Hydraulic Reel Stand Connection |
| Conductor Size: | ≤900 mm² |
| Corresponding Pull Speed: | 2.5km/h |
| Electrical System: | 24V |
| Engine: | Cummins / Weichai |
| Main Hydraulic Pump: | Rexroth / Linde |
| Hydraulic Motor: | Rexroth |
| Reducer: | RR /Rexroth |
| Options: | Digital control / Centralized control / IoT transmission function / Remote diagnosis system / Clamp function |
| Dimensions: | 5690 × 2300 × 2700 mm |
| Net Weight: | 9400 kg |
| # | Model | Max Continuous Pull | Max Continuous Tension | Max Pay-Off Speed | Conductor Size | Net Weight | View |
|---|---|---|---|---|---|---|---|
| 1 | SA-ZQY-2×90 | 2×90kN/1×180kN | 2×90kN/1×180kN | 5 km/h | ≤1000 mm² | 11080 kg | View |
| 2 | SA-ZQY-2×60 | 2×60kN/1×120kN | 2×60kN/1×120kN | 5 km/h | ≤900 mm² | 9400 kg | View |
| 3 | SA-ZQY-2×50 | 2×50kN/1×100kN | 2×50kN/1×100kN | 5 km/h | ≤630 mm² | 7000 kg | View |
| 4 | SA-ZQY-2×40 | 2×40kN/1×80kN | 2×40kN/1×80kN | 5 km/h | ≤500 mm² | 6560 kg | View |
| 5 | SA-ZQY-60 | — | 60kN | 5 km/h | ≤630 mm² | 4060 kg | View |
| 6 | SA-ZQY-40 | — | 40kN | 5 km/h | ≤500 mm² | 3060 kg | View |
