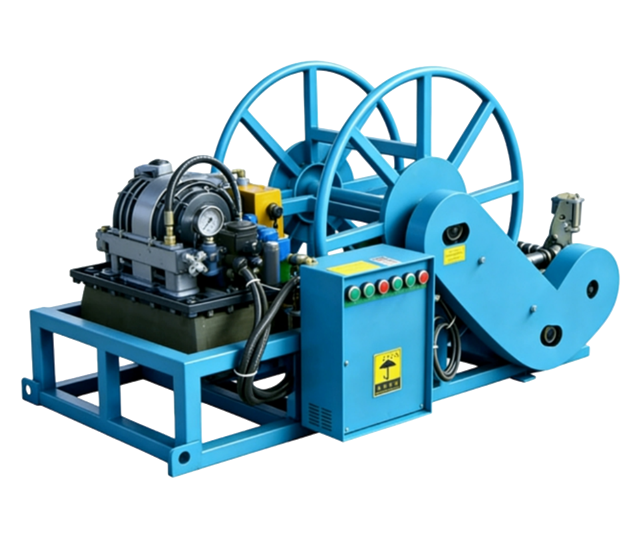

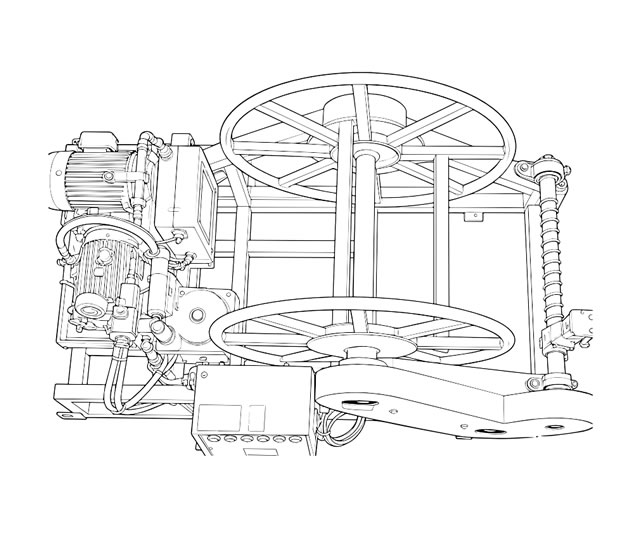

Hydraulic Wire Rope Reel Winder For Cable Pulling Winch

The Hydraulic Wire Rope Reel Winder is an auxiliary machine designed for use with cable pulling winches during underground cable installation. While the cable pulling winch uses a steel wire rope to pull the cable, this machine automatically collects and winds the wire rope discharged from the winch, eliminating the need for workers to manually pull and handle the trailing rope.

Equipped with an automatic synchronized take-up system, the reel winding speed continuously adjusts to match the wire rope output speed of the cable pulling winch. This ensures smooth and orderly rope recovery while maintaining stable tension and preventing loose rope from tangling or accumulating around the work area.

By replacing manual tail-rope handling, the machine significantly improves jobsite safety and operating efficiency. It helps reduce the risk of operators becoming entangled in the moving wire rope or being injured by sudden rope snapback, while also reducing labor requirements during cable pulling operations.

With hydraulic drive, adjustable tension control, and reliable synchronized operation, the Hydraulic Wire Rope Reel Winder provides a safer and more efficient solution for recovering and managing pulling wire ropes in underground cable laying projects.

Key Features：

1、Synchronized Operation with Cable Pulling Winches

Operates in synchronization with the cable pulling winch, with the wire rope take-up speed automatically matching the payout speed. No manual adjustment is required, making operation easier and more efficient.

2、Precision-Sealed Hydraulic System

Precision sealing minimizes hydraulic oil leakage and ensures reliable operation in humid and dusty outdoor environments.

3、High-Strength Steel Frame

The frame is constructed from high-strength structural steel, providing excellent rigidity, durability, and stability during operation.

4、Safer Automatic Wire Rope Take-Up

Automatic take-up replaces manual handling of the trailing wire rope, significantly reducing the risk of operator entanglement and injuries caused by rope snapback for safer cable pulling operations.
