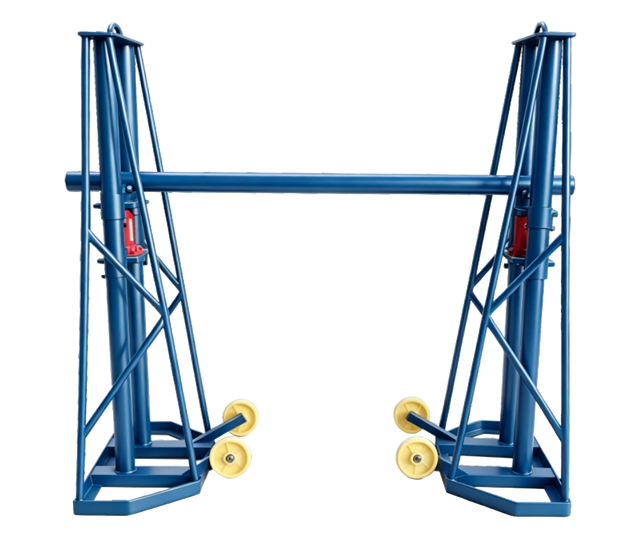

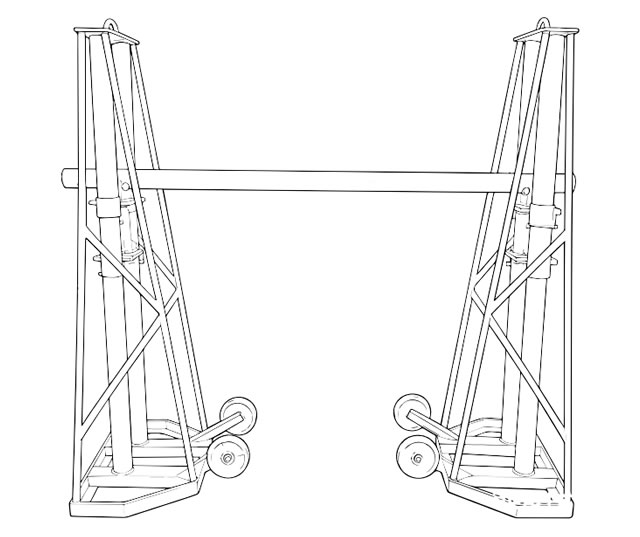

Hydraulic Cable Reel Stand, CRS-HD-T5-20, 5–20 Ton
- Drive System:
- Hydraulic Drive
- Rated Load:
- 5–20 Ton
- Reel Diameter Range:
- 800–3,000 mm
Hydraulic cable reel stands use a pair of side supports, hydraulic lifting mechanisms, and a central spindle to raise and support the cable reel. They are designed for large, heavy cable reels with substantial diameters.
The robust frame provides excellent stability, while the lifting process is smooth and controllable. No external power source is required, and a single operator can raise or lower the cable reel with minimal effort.
Heavy-duty models with rated capacities from 5 to 20 tons are particularly suitable for large power cables, long-distance underground cable installation, and transmission line construction. Heavy-duty casters at the base allow convenient short-distance movement and repositioning on site, reducing the need for forklifts or cranes during routine adjustments.
| Model: | CRS-HD-T5-20 |
| Drive System: | Hydraulic Drive |
| Rated Load: | 5–20 Ton |
| Reel Diameter Range: | 800–3,000 mm |
| Max. Reel Width: | 1,200–1,800 mm |
| Net Weight: | 300 kg |
| Model | Rated Load | Reel Diameter Range | Max. Reel Width |
|---|---|---|---|
| 5T | 5 t | 800–1,800 mm | ≤ 1,200 mm |
| 10T | 10 t | 1,000–2,400 mm | ≤ 1,400 mm |
| 15T | 15 t | 1,200–2,700 mm | ≤ 1,600 mm |
| 20T | 20 t | 1,400–3,000 mm | ≤ 1,800 mm |
