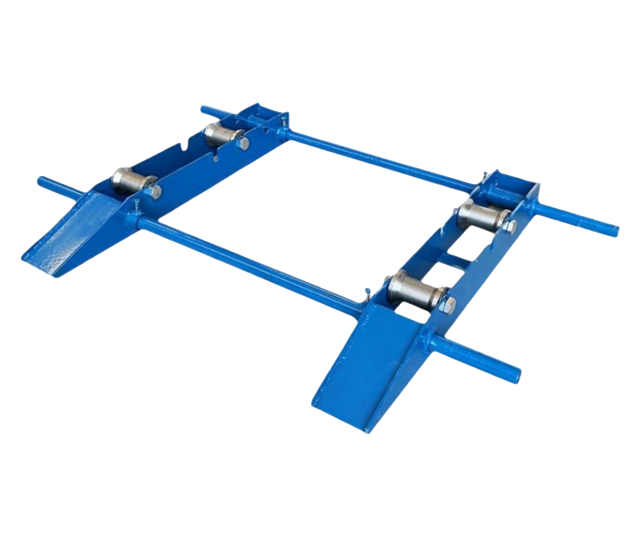

Heavy-Duty Cable Reel Roller, CRS-CRR-T3-5, 3–5 Ton
- Drive System:
- Non-Powered
- Rated Load:
- 3–5 Ton
- Reel Diameter Range:
- 1,200–2,000 mm

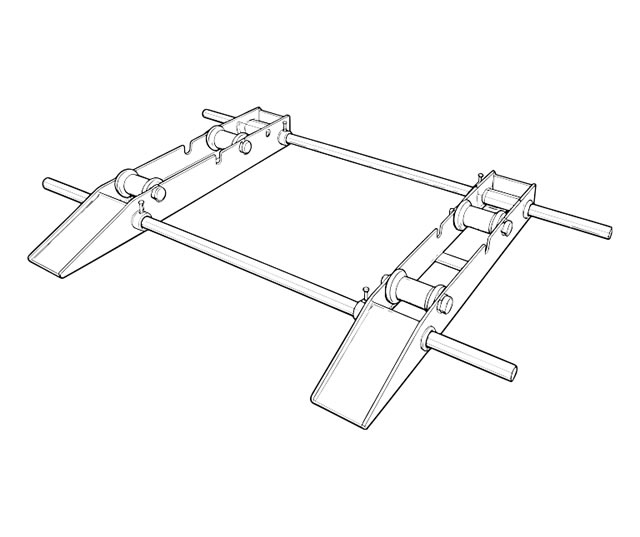

Cable reel rollers feature a modular, split-track design. Steel rollers directly support the flanges on both sides of the cable reel, eliminating the need for a central spindle or lifting the entire reel off the ground.
Loading ramps at both ends allow the reel to be rolled into position manually or with mechanical assistance. Once loaded, the reel rotates smoothly on the rollers for controlled cable payout.
Models with rated capacities from 3 to 5 tons are compact, easy to assemble and transport, and suitable for small to medium-sized cable reels. They are especially useful at job sites with limited space, scattered work locations, frequent equipment relocation, or temporary installation requirements, including urban road projects, industrial cable installation, telecommunications work, emergency repairs, and multi-site operations.
| Model: | CRS-CRR-T3-5 |
| Drive System: | Non-Powered |
| Rated Load: | 3–5 Ton |
| Reel Diameter Range: | 1,200–2,000 mm |
| Max. Reel Width: | 1,000–1,800 mm |
| Net Weight: | 40–80 kg |
| Model | Rated Load | Reel Diameter Range | Max. Reel Width |
|---|---|---|---|
| 3T-1.0 | 3 Ton | ≤ 1,200 mm | ≤ 1,000 mm |
| 3T-1.2 | 3 Ton | ≤ 1,400 mm | ≤ 1,200 mm |
| 3T-1.5 | 3 Ton | ≤ 1,600 mm | ≤ 1,500 mm |
| 3T-1.8 | 3 Ton | ≤ 1,800 mm | ≤ 1,800 mm |
| 5T-1.5 | 5 Ton | ≤ 1,800 mm | ≤ 1,500 mm |
| 5T-1.8 | 5 Ton | ≤ 2,000 mm | ≤ 1,800 mm |
