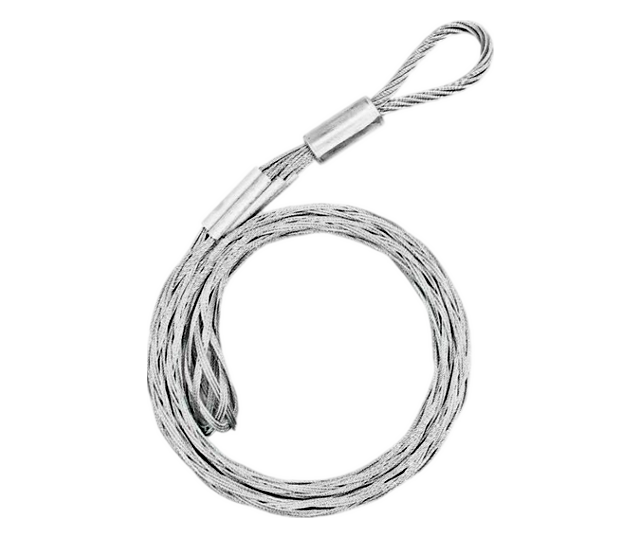

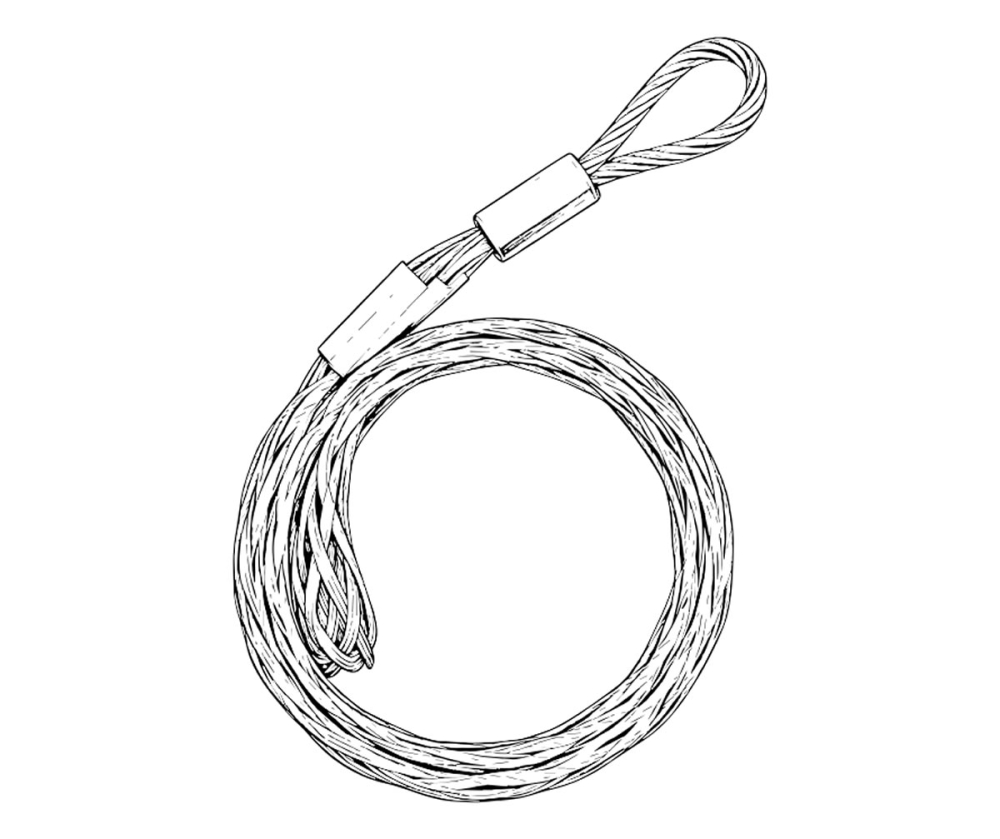

Single-Eye Wire Mesh Cable Pulling Grip
- Cable Diameter Range:
- 37–140 mm
The Single-Eye Wire Mesh Cable Pulling Grip is designed for securely pulling power and communication cables through conduits, trenches, manholes, and other cable-laying routes. Its flexible steel wire mesh contracts radially around the cable when axial pulling force is applied, creating a self-gripping action that increases holding strength as the pulling force rises.
The woven mesh distributes the pulling load evenly over a broad section of the cable sheath, helping reduce concentrated pressure, slippage, and insulation damage. A flexible pulling eye allows the grip to pass smoothly through pulleys, conduit entrances, bends, and confined installation areas. Six standard models are available for cable outer diameters from 37 to 140 mm, with custom sizes and lengths available for specific applications.
Key Features:
1、Wide Cable Size Compatibility
Available in six standard models covering cable outer diameters from 37 to 140 mm. Total lengths range from 1,300 to 3,100 mm, providing suitable options for different cable sizes and pulling requirements.
2、Self-Tightening Mesh Design
The woven wire mesh contracts around the cable under axial pulling force. As the pulling force increases, the grip tightens further, helping maintain a secure hold and reduce the risk of cable slippage.
3、Even Load Distribution
The flexible mesh wraps evenly around the cable sheath and distributes pulling force across a larger contact area. This helps minimize localized stress and reduces the possibility of sheath deformation or damage.
4、Cable Sheath Protection
Smooth, deburred steel wires help prevent sharp pressure points from forming against the cable surface, protecting the insulation and outer sheath during installation.
5、Reinforced Aluminum Alloy Sleeves
The mesh and pulling eye are secured with firmly crimped aluminum alloy sleeves, providing a stable connection without welded joints or exposed sharp edges.
6、Flexible Single-Eye Construction
The integrated flexible pulling eye provides a convenient connection point for pulling ropes, swivels, or other cable-pulling connectors while maintaining flexibility throughout the pulling route.
7、Easy Passage Through Cable Routes
The flexible mesh structure can pass through pulleys, conduit entrances, bends, corners, and manholes, making it suitable for underground cable laying and other confined installation environments.
8、Multiple Wire Specifications
Depending on the model, the grips use 2.0 mm, 2.5 mm, or 3.0 mm three-strand steel wire, providing appropriate mesh construction for different cable diameter ranges.
9、Custom Sizes Available
Cable diameter range, grip length, mesh construction, and pulling-eye dimensions can be customized for special cable-laying applications.
| Model | Cable Diameter Range | Mesh Wire Specification | Overall Length | Weight |
|---|---|---|---|---|
| SGE-25-50 | 37–50 mm | Ø2.0 mm, 3-Strand | 1,300 mm | 0.79 kg |
| SGE-70-95 | 50–60 mm | Ø2.0 mm, 3-Strand | 1,500 mm | 0.98 kg |
| SGE-120-150 | 60–80 mm | Ø2.5 mm, 3-Strand | 1,800 mm | 1.30 kg |
| SGE-185-240 | 80–100 mm | Ø2.5 mm, 3-Strand | 2,300 mm | 2.00 kg |
| SGE-300-400 | 100–120 mm | Ø2.5 mm, 3-Strand | 2,800 mm | 3.00 kg |
| SGE-500-600 | 120–140 mm | Ø3.0 mm, 3-Strand | 3,100 mm | 4.00 kg |
| Model: | CPGS-WM-SGE |
| Cable Diameter Range: | 37–140 mm |
| Dimensions: | 1,300–3,100 mm |
| Net Weight: | 0.79–4.00 kg |
